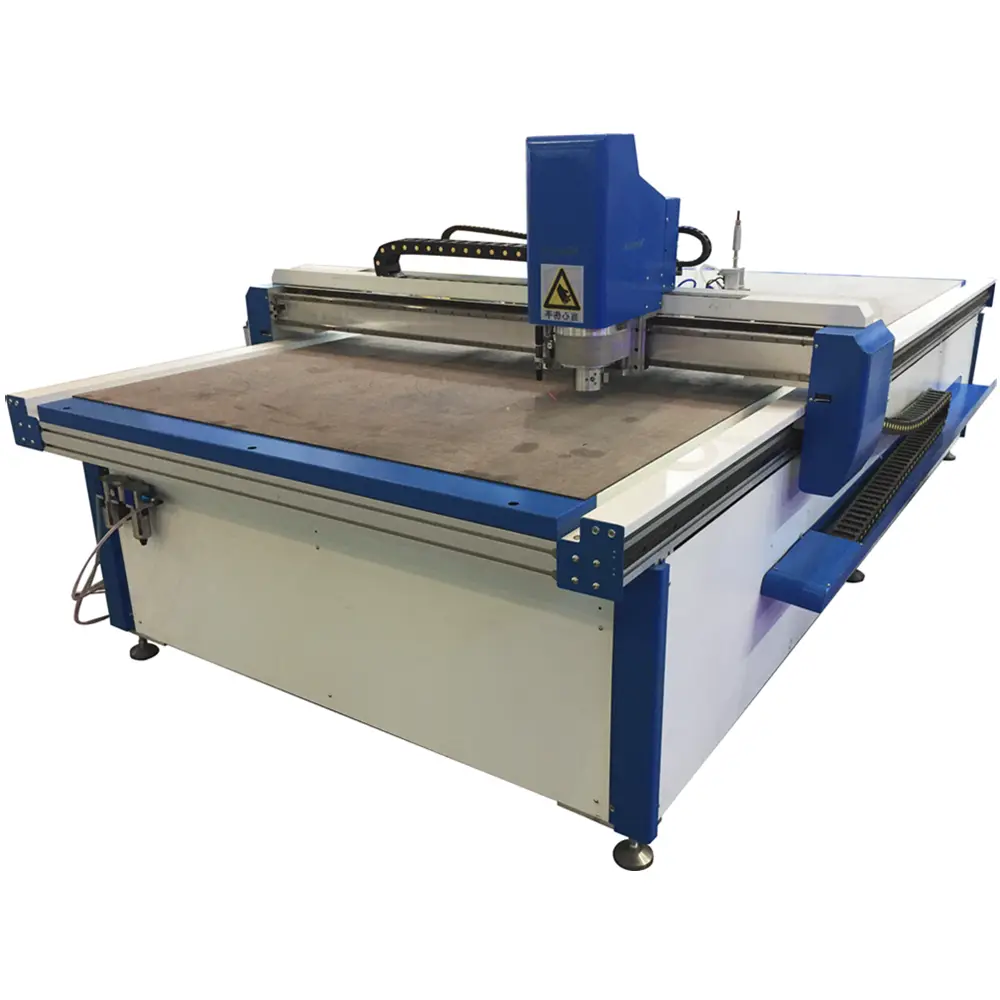

E-mail:Machine@chinaventech.com Expert for pre insulated duct CNC cutting machine.
Hot Selling Air Conditioner Control Board
air conditioner control board is of a quality that exceeds international standards! As the most important foundation of the product, the raw material is well selected and strictly tested to ensure that they are of the highest quality. Besides, the highly controlled production process and the strict quality inspection procedure further guarantee that the product quality is always at its best. The quality is the top priority of YINGDE VENTECH INTELLIGENT EQUIPMENT CO., LTD..
VENTECH is a growing brand and has a high reputation in the global. The sales volume of our products accounts for a large proportion in the international market and we provide the best quality and function to our customers. Meanwhile, our products are increasing in scale with more choices thanks to the high rate of customer retention.
This component acts as the central hub for air conditioning systems, managing temperature, humidity, and airflow with precision. It optimizes performance and minimizes energy consumption through advanced technology, ensuring seamless communication between the user interface and mechanical components. Its compact design facilitates easy integration into various air conditioning units, enhancing functionality without sacrificing space.
How to choose air conditioner control board?
- Ensures consistent operation of air conditioning systems with minimal downtime due to robust circuitry and fail-safe designs.
- Ideal for commercial HVAC systems and residential units requiring uninterrupted cooling performance.
- Look for control boards with reinforced connectors and certifications like UL or CE for enhanced reliability.
- Optimizes energy consumption by intelligently managing compressor cycles and fan speeds for reduced power usage.
- Suitable for eco-friendly homes and industrial environments aiming to lower electricity costs.
- Select models with energy-saving algorithms and compatibility with smart thermostats for peak efficiency.
- Delivers accurate temperature and humidity control using advanced sensors and adaptive microprocessor technology.
- Perfect for laboratories, data centers, and homes needing exact climate regulation.
- Choose boards with high-resolution sensor arrays and support for multi-zone temperature zoning systems.
no data
When you're trying to be the most popular company in your field, you need to do a very good thing - in fact, better than anyone in your field - or you'll never finish it first. One of the very good things VENTECH has done is to make duct board cutting machine. From design to production, we pay attention to detail and we offer high quality, reliable and cost-effective product range.
YINGDE VENTECH INTELLIGENT EQUIPMENT CO., LTD. ranks among the strongest manufacturers of Grilles and diffuser production machine. We have been in this industry since inception. The foam cutting machine series is widely praised by customers. The result shows that fabric cutting machine has obvious superiority for automatic fabric cutting machine such as automatic fabric cutting machine. This product stands out for its outstanding lubricating effect. It is supposed to cater to all kinds of customers across the market. This product enables operators to work more relaxingly.
Under the principle of customer-orientation, we will spare no efforts to develop and produce products that appeal to local tastes, and offer considerate service.
YINGDE VENTECH INTELLIGENT EQUIPMENT CO., LTD. ranks among the strongest manufacturers of Grilles and diffuser production machine. We have been in this industry since inception. The foam cutting machine series is widely praised by customers. The result shows that fabric cutting machine has obvious superiority for automatic fabric cutting machine such as automatic fabric cutting machine. This product stands out for its outstanding lubricating effect. It is supposed to cater to all kinds of customers across the market. This product enables operators to work more relaxingly.
Under the principle of customer-orientation, we will spare no efforts to develop and produce products that appeal to local tastes, and offer considerate service.
With the help of our excellent design team, YINGDE VENTECH INTELLIGENT EQUIPMENT CO., LTD. products are known for their superior design capabilities. Besides focusing on improving the quality of duct board cutting machine, we also emphasize the importance of its appearance. Each product is made with an attractive style.
Over the years, VENTECH INTELLIGENT EQUIPMENT has stood firmly in the domestic markets. We are known to have competitive strength in manufacturing fabric cutting machine. The automatic machine series is widely praised by customers. The manufacturing process of VENTECH factory automation covers sophisticated workmanship. Its mechanical parts and components have to go through rough machining, cutting, grinding, honing, finish milling, and polishing. This product has been widely used for punching and soft material cutting. It drives sales and has very substantial economic benefits. This product is able to run at a fast and stable manner.
We are supporting the transition to a low-carbon economy. We are working to ensure our own operations are sustainable and supporting our customers and their supply chains to reduce their own impact on the environment.
Over the years, VENTECH INTELLIGENT EQUIPMENT has stood firmly in the domestic markets. We are known to have competitive strength in manufacturing fabric cutting machine. The automatic machine series is widely praised by customers. The manufacturing process of VENTECH factory automation covers sophisticated workmanship. Its mechanical parts and components have to go through rough machining, cutting, grinding, honing, finish milling, and polishing. This product has been widely used for punching and soft material cutting. It drives sales and has very substantial economic benefits. This product is able to run at a fast and stable manner.
We are supporting the transition to a low-carbon economy. We are working to ensure our own operations are sustainable and supporting our customers and their supply chains to reduce their own impact on the environment.
How to use rubber and plastic insulation for air ducts?
1. Scope of application
This construction method is applicable to the rubber and plastic insulation construction of rectangular metal air ducts in various types of air-conditioning and ventilation systems.
2. Process principle
This construction method is formed by improving the rubber and plastic insulationof the traditional galvanized steel air duct. The core is to improve the blanking method of the rubber and plastic insulation board. The four sides of the insulation layer are at right angles to reduce the bonding seam. Stakeout of the rubber-plastic insulation layer of the rectangular straight air duct, according to the side length of the air duct and the thickness of the rubber-plastic plate, the combination method shown in Figure 1 is adopted for the lofting. Calculate the stakeout size according to the pre-measured air duct specifications. Use a steel ruler or a steel tape to measure on the plate according to the calculated lofting size, and draw a V-shaped groove line and a 45-degree slope line on the plate with a square aluminum alloy ruler and a paintbrush. The seams between the insulation board and the surface of the air duct reduce the number of joints and enhance the heat preservation effect of the air duct.
The paper cutter is required to tilt left and right 45°when chamfering the corner, so that the cut "V"-shaped notch is 90°, which is convenient for folding into a right angle. When cutting, the tool should be close to the ruler to ensure a straight cut and prevent cutting size errors.
3. Key points of construction operation
1. Construction preparation:
(1) The direction, coordinates, and elevation of the air ducts of each system are installed accurately, and the air leakage and light leakage of the air ducts have been tested and tested to meet the requirements.
(2) Prepare the blanking list according to the model of the system air duct.
(3) Technicians make technical disclosures to construction personnel, clarify the size and requirements of thermal insulation blanking materials, and make good work instruction records
(4) Compile the erection scheme of the on-site processing operation platform to ensure that the construction conditions meet the implementation of the scheme.
2. Wipe and clean the surface of the air duct
Use rags, paint brushes and other tools to clean up the dust or putty and other attachments on the surface of the air duct to ensure that the surface of the air duct is clean and free of debris, and will not affect the surface coating.
3. According to the size of the air duct, the material of the insulation board is cut
The blanking of the insulation board is divided into straight pipe sections, elbows, variable diameter pipes and air valve parts, etc. All of them are cut as a whole. According to the specifications of the air pipes, V-shaped groove lines and 45-degree slope lines are drawn on the plates. The four corners of the pipe are cut and butted at a 45-degree angle to ensure that there is only one adhesive seam at the bottom or top of the air pipe.
4. Glue the surface of the air duct and the plate
Insulation glue should be evenly applied on the outer surface of air ducts, components or equipment, without gaps or omissions. Brush the glue in the order of brushing the insulation material first, then brushing the surface of the air duct, and the glue film is required to be even and free of flow.
5. Rubber and plastic plate pasting
After the glue is left to stand for 2 minutes to initially set, first paste the top plate and the rubber and plastic plates on both sides, press repeatedly with a clapper to ensure that the insulation material is tightly bonded to the air duct, components or equipment, and then paste the bottom insulation plate. For irregular parts such as right-angle elbows and B-shaped bends, the four sides can be pasted separately, and the side elevations can be pressed against the upper and lower bottom surfaces.
6. Flange insulation
For the flange connection of two air ducts, add a belt to keep warm. The width of the belt should be 100mm, and it should be firmly pasted and pressed flat.
7. Inspection and acceptance
After the rubber-plastic board is pasted, check the flatness with a level ruler, and locally press the parts that exceed the deviation range to ensure the flatness of the surface. After the rubber and plastic board is pasted and repaired, it will be reported to the supervisory unit for acceptance after self-inspection by the project department.
More Recommendations:
Duct Fabrication Machines
Duct Board Cutting Machine
Insulation Cutting Machine
Pre Insulated Ductwork
Phenolic Ductwork
Duct Fabrication Procedure
Duct Board Fabrication
How to Fabricate Ductwork
Types of Duct
HVAC Industry Trends
HVAC Ductwork Fabrication
1. Scope of application
This construction method is applicable to the rubber and plastic insulation construction of rectangular metal air ducts in various types of air-conditioning and ventilation systems.
2. Process principle
This construction method is formed by improving the rubber and plastic insulationof the traditional galvanized steel air duct. The core is to improve the blanking method of the rubber and plastic insulation board. The four sides of the insulation layer are at right angles to reduce the bonding seam. Stakeout of the rubber-plastic insulation layer of the rectangular straight air duct, according to the side length of the air duct and the thickness of the rubber-plastic plate, the combination method shown in Figure 1 is adopted for the lofting. Calculate the stakeout size according to the pre-measured air duct specifications. Use a steel ruler or a steel tape to measure on the plate according to the calculated lofting size, and draw a V-shaped groove line and a 45-degree slope line on the plate with a square aluminum alloy ruler and a paintbrush. The seams between the insulation board and the surface of the air duct reduce the number of joints and enhance the heat preservation effect of the air duct.
The paper cutter is required to tilt left and right 45°when chamfering the corner, so that the cut "V"-shaped notch is 90°, which is convenient for folding into a right angle. When cutting, the tool should be close to the ruler to ensure a straight cut and prevent cutting size errors.
3. Key points of construction operation
1. Construction preparation:
(1) The direction, coordinates, and elevation of the air ducts of each system are installed accurately, and the air leakage and light leakage of the air ducts have been tested and tested to meet the requirements.
(2) Prepare the blanking list according to the model of the system air duct.
(3) Technicians make technical disclosures to construction personnel, clarify the size and requirements of thermal insulation blanking materials, and make good work instruction records
(4) Compile the erection scheme of the on-site processing operation platform to ensure that the construction conditions meet the implementation of the scheme.
2. Wipe and clean the surface of the air duct
Use rags, paint brushes and other tools to clean up the dust or putty and other attachments on the surface of the air duct to ensure that the surface of the air duct is clean and free of debris, and will not affect the surface coating.
3. According to the size of the air duct, the material of the insulation board is cut
The blanking of the insulation board is divided into straight pipe sections, elbows, variable diameter pipes and air valve parts, etc. All of them are cut as a whole. According to the specifications of the air pipes, V-shaped groove lines and 45-degree slope lines are drawn on the plates. The four corners of the pipe are cut and butted at a 45-degree angle to ensure that there is only one adhesive seam at the bottom or top of the air pipe.
4. Glue the surface of the air duct and the plate
Insulation glue should be evenly applied on the outer surface of air ducts, components or equipment, without gaps or omissions. Brush the glue in the order of brushing the insulation material first, then brushing the surface of the air duct, and the glue film is required to be even and free of flow.
5. Rubber and plastic plate pasting
After the glue is left to stand for 2 minutes to initially set, first paste the top plate and the rubber and plastic plates on both sides, press repeatedly with a clapper to ensure that the insulation material is tightly bonded to the air duct, components or equipment, and then paste the bottom insulation plate. For irregular parts such as right-angle elbows and B-shaped bends, the four sides can be pasted separately, and the side elevations can be pressed against the upper and lower bottom surfaces.
6. Flange insulation
For the flange connection of two air ducts, add a belt to keep warm. The width of the belt should be 100mm, and it should be firmly pasted and pressed flat.
7. Inspection and acceptance
After the rubber-plastic board is pasted, check the flatness with a level ruler, and locally press the parts that exceed the deviation range to ensure the flatness of the surface. After the rubber and plastic board is pasted and repaired, it will be reported to the supervisory unit for acceptance after self-inspection by the project department.
More Recommendations:
Duct Fabrication Machines
Duct Board Cutting Machine
Insulation Cutting Machine
Pre Insulated Ductwork
Phenolic Ductwork
Duct Fabrication Procedure
Duct Board Fabrication
How to Fabricate Ductwork
Types of Duct
HVAC Industry Trends
HVAC Ductwork Fabrication
The Advantages of Fiberglass Air Ducts in Ventilation Systems
Fiberglass air ducts have become a popular choice in ventilation systems due to their unique properties and benefits. These ducts, made from glass fibers bonded with resin, provide an effective and reliable solution for air distribution in various settings. This article explores the advantages of using fiberglass air ducts in ventilation systems.
Thermal Insulation and Energy Efficiency
One of the primary benefits of fiberglass air ducts is their excellent thermal insulation properties. The fiberglass material has a low thermal conductivity, which helps maintain the temperature of the air being transported through the ducts. This insulation minimizes heat loss and gain, making HVAC systems more energy-efficient. As a result, buildings can achieve significant energy savings and reduced utility costs, contributing to overall sustainability.
Noise Reduction
Fiberglass air ducts are known for their sound-absorbing qualities. The fibrous structure of the material dampens vibrations and reduces noise transmission within the ducts. This feature is particularly valuable in commercial buildings, offices, and residential areas where noise reduction is crucial for maintaining a comfortable environment. By minimizing the noise generated by the air handling system, fiberglass ducts help create quieter and more pleasant indoor spaces.
Resistance to Corrosion and Moisture
Fiberglass air ducts are highly resistant to corrosion and moisture, which enhances their durability and longevity. Unlike metal ducts, fiberglass does not rust or corrode when exposed to humid conditions. This resistance to moisture also prevents the growth of mold and mildew, ensuring cleaner and healthier air quality. The durability of fiberglass ducts reduces the need for frequent maintenance and replacements, leading to lower long-term costs for building owners.
Lightweight and Easy Installation
The lightweight nature of fiberglass air ducts simplifies the installation process. These ducts are easier to handle and maneuver compared to traditional metal ducts, reducing labor costs and installation time. Additionally, fiberglass ducts can be fabricated into various shapes and sizes, allowing for flexible design and customization to meet specific project requirements. The ease of installation makes fiberglass ducts an attractive option for both new constructions and retrofit projects.
Fire Resistance
Fiberglass air ducts are manufactured to meet stringent fire safety standards. The material is inherently non-combustible and does not contribute to the spread of fire. In the event of a fire, fiberglass ducts help contain the flames and prevent them from spreading through the ventilation system. This fire-resistant property enhances the overall safety of buildings and protects occupants in emergency situations.
Conclusion
Fiberglass air ducts offer a range of advantages that make them a preferred choice for ventilation systems. Their thermal insulation properties, noise reduction capabilities, resistance to corrosion and moisture, lightweight nature, and fire resistance contribute to the efficiency, durability, and safety of HVAC systems. As the demand for energy-efficient and sustainable building solutions continues to grow, fiberglass air ducts are set to play a significant role in the future of ventilation systems.
By Sammi
Fiberglass air ducts have become a popular choice in ventilation systems due to their unique properties and benefits. These ducts, made from glass fibers bonded with resin, provide an effective and reliable solution for air distribution in various settings. This article explores the advantages of using fiberglass air ducts in ventilation systems.
Thermal Insulation and Energy Efficiency
One of the primary benefits of fiberglass air ducts is their excellent thermal insulation properties. The fiberglass material has a low thermal conductivity, which helps maintain the temperature of the air being transported through the ducts. This insulation minimizes heat loss and gain, making HVAC systems more energy-efficient. As a result, buildings can achieve significant energy savings and reduced utility costs, contributing to overall sustainability.
Noise Reduction
Fiberglass air ducts are known for their sound-absorbing qualities. The fibrous structure of the material dampens vibrations and reduces noise transmission within the ducts. This feature is particularly valuable in commercial buildings, offices, and residential areas where noise reduction is crucial for maintaining a comfortable environment. By minimizing the noise generated by the air handling system, fiberglass ducts help create quieter and more pleasant indoor spaces.
Resistance to Corrosion and Moisture
Fiberglass air ducts are highly resistant to corrosion and moisture, which enhances their durability and longevity. Unlike metal ducts, fiberglass does not rust or corrode when exposed to humid conditions. This resistance to moisture also prevents the growth of mold and mildew, ensuring cleaner and healthier air quality. The durability of fiberglass ducts reduces the need for frequent maintenance and replacements, leading to lower long-term costs for building owners.
Lightweight and Easy Installation
The lightweight nature of fiberglass air ducts simplifies the installation process. These ducts are easier to handle and maneuver compared to traditional metal ducts, reducing labor costs and installation time. Additionally, fiberglass ducts can be fabricated into various shapes and sizes, allowing for flexible design and customization to meet specific project requirements. The ease of installation makes fiberglass ducts an attractive option for both new constructions and retrofit projects.
Fire Resistance
Fiberglass air ducts are manufactured to meet stringent fire safety standards. The material is inherently non-combustible and does not contribute to the spread of fire. In the event of a fire, fiberglass ducts help contain the flames and prevent them from spreading through the ventilation system. This fire-resistant property enhances the overall safety of buildings and protects occupants in emergency situations.
Conclusion
Fiberglass air ducts offer a range of advantages that make them a preferred choice for ventilation systems. Their thermal insulation properties, noise reduction capabilities, resistance to corrosion and moisture, lightweight nature, and fire resistance contribute to the efficiency, durability, and safety of HVAC systems. As the demand for energy-efficient and sustainable building solutions continues to grow, fiberglass air ducts are set to play a significant role in the future of ventilation systems.
By Sammi
