Automatic pre-insulated duct cutting machine VDCM-4013

这里可以自定义设置

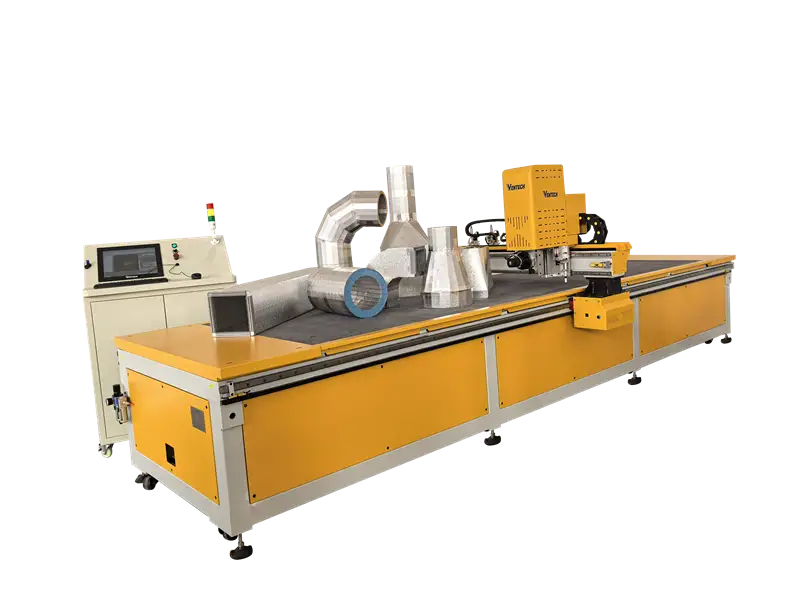

Automatic pre-insulated duct cutting machine VDCM-4013
B站不支持收货地址
B站不支持库存规格
MOQ:
1 set
Payment:
50% T/T down payment,50% T/T balance before shipment
Place of Origin
China
Brand:
VENTECN
Delivery time:
45-60 days
Start Port:
Shenzhen
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容

Automatic pre-insulated duct cutting machine

Ventech pre insulated duct cutter is fully automatic and ECO Fast CNC machine, totally designed by our own. CNC PID fabrication cutting Machines are manufactured with the latest technologies. They cut straight and special parts from insulation panels, used in the fabrication of pre-insulated HVAC ductwork and duct & pipe insulation.



With our simple and smooth operating system, the complex graphics and product can be easily, precisely, and rapidly cut and produced. Our unique version of software brings you a complete solution for revolutionizing the manufacturing of insulated ductwork within the HVAC industry. our specifically designed enclosed automatic tool changer, V grooving and cutting the panel shape can be done in one process, giving massive savings in all aspects. It comes with an extensive parametric library of ducting components allowing full control of the panel configuration and dimensions. All phenolic panels can be nested to maximise sheet usage and reduce material cost. A simple click of the mouse transforms the nested files directly to CNC Routing Machine ready for processing. Once the machine receives the program the components are then produced exactly to specification whether it is a simple "one off" or mass production.



Advanced automatic computing capabilities and automation technologies eliminate the traditional labor-intensive work required to produce air duct panels, and no longer need to manually mark, create templates, or use Hand-held tool for cutting.



The duct cutter permits to obtain finished pieces for ducts in pre-insulated; no more hand operations and bendings to do, the pieces obtained are ready to be glued. The standard machine is completed with a large quantity of accessories and devices dedicated to reduce the production time and generate the best quality of finished product.



With a big working size 4000x1300mm, a phenolic foam board can be fully utilized. As a result, production efficiency has been greatly improved, material scrap has been reduced, and production costs have been saved for duct fabrication. It can cut different shapes in one time, such as elbow type, shoe type, Y type, reducer, etc.



The customers are satisfied with this CNC duct rounting machine, especially compared to the other main brands in the market, we are stable and fast, and with higher cost-effective. The long cooperation and support make our improving more and more.
pre insulated duct.



Except for phenolic duct panel cutting, other applications include: routing and V-grooving aluminum-polymer composite material, fibreglass (fiberglass) insulation, PVC, PU, PIR foam duct panels for air conditioning and HVAC system.



Advantage

- Rapid manufacture of ducting components.

- Simple or complex shapes produced with ease.

- Increased flexibility.

- Increased Accuracy
- Increased Repeatability
- Reduced Material Waste
- Reduced Lead Times

- Reduced production cycle times.

- Complicated panels made easy

- No second cuts

- No mistakes

- Panels come off machine perfect, ready for joining

- Any shape, curves angle or straight

- Complete Dust Removal



Specification

Model numberVDCM-4013
Cutting Thickness0.2-30mm
Cutting tolerance±0.2mm
Supply voltageAC 220V 380V ±10%,50HZ
Cutting area4000mm*1300mm
Overall dimension4610*2050*1360mm
