When it comes to managing heating, ventilation, and air conditioning (HVAC) systems in a laboratory, precision and efficiency are paramount. HVAC systems are integral to maintaining a controlled environment, ensuring the safety and productivity of laboratory staff, and complying with regulatory standards. However, the manual process of cutting pre-insulated ducts can be time-consuming, error-prone, and detrimental to the overall integrity of the system. This is where pre-insulated duct cutting machines come in—a tool designed to streamline these operations and enhance the overall performance of laboratory facilities.

Understanding Pre-Insulated Duct Cutting Machines: A Tool for Precision and Efficiency
Pre-insulated duct cutting machines are advanced tools specifically engineered to cut pre-insulated ducts with precision and speed. These machines use high-precision blades and automated systems to ensure that cuts are accurate and consistent. One of the key features is the ability to maintain the precise insulation layers, which is crucial for maintaining the thermal efficiency of the ducting system. Unlike traditional cutting tools, these machines offer several advantages:


Precision: The automated cutting process ensures that each cut is exact, reducing the risk of errors and ensuring that the ducts fit perfectly into the existing system.
Speed: The machine can cut through multiple layers of insulation and metal simultaneously, significantly reducing the time required for construction and maintenance.
Consistency: Automated systems eliminate the variability that can occur with manual cutting, ensuring that each cut is consistent and meets the required specifications.

Environmental Impact and Safety Considerations: The Green and Sustainable Angle
The use of pre-insulated duct cutting machines not only enhances operational efficiency but also contributes to environmental sustainability. By ensuring precise and consistent cuts, these machines help reduce material waste, which is a significant environmental benefit. Additionally, the use of automated systems can lead to energy savings, as they minimize the need for multiple passes and excess material.

Safety is another critical consideration when using any cutting tool in a laboratory environment. Pre-insulated duct cutting machines come with features like safety guards, automated shutdown mechanisms, and ergonomic design to protect laboratory staff. Compliance with safety regulations is ensured through regular inspections and adherence to manufacturer guidelines. This not only safeguards the health and well-being of staff but also ensures that the laboratory remains in compliance with regulatory requirements.

Case Study: How a Leading Research Institution Utilized a Pre-Insulated Duct Cutting Machine
A leading research institution faced several challenges in managing its HVAC systems. The pre-insulated ducts were required to be cut to specific dimensions to fit into the existing infrastructure, but the manual process was time-consuming and often led to errors. By implementing a pre-insulated duct cutting machine, the institution was able to achieve several improvements:


Reduction in Material Waste: The machine’s precision cutting ensured that no excess material was wasted, leading to cost savings and environmental benefits.
Time Saved: The automated process significantly reduced the time required for cutting, allowing the institution to focus on other critical tasks.
Improved Safety: The machine’s safety features and ergonomic design protected staff from potential injuries, enhancing the overall safety culture.

Comparative Analysis: Traditional Methods vs. Pre-Insulated Duct Cutting Machines
To understand the benefits of pre-insulated duct cutting machines, it is essential to compare them with traditional cutting methods. Traditional methods include using hand saws, grinders, and other manual tools. These methods have several limitations:


Accuracy: Manual cutting can lead to inconsistent cuts, which may compromise the integrity of the ducts and the overall HVAC system.
Speed: The process is time-consuming and may require multiple passes to achieve the desired cut.
Material Waste: Manual cutting often results in more material waste, as it is difficult to achieve precise cuts without causing damage.

In contrast, pre-insulated duct cutting machines offer:


Precision: Automated systems ensure that each cut is exact, reducing the risk of errors.
Speed: The machine can cut through multiple layers quickly and efficiently.
Consistency: The machine maintains consistent cuts, ensuring that the ducts fit perfectly into the system.

Future Trends and Innovations in Duct Cutting Technology
As technology continues to advance, we are seeing emerging trends in duct cutting technology that are set to revolutionize the field. Some of these trends include:


Automated Cutting Systems: Advanced robotic systems are being developed that can perform complex cuts with minimal human intervention. These systems can be integrated with digital design software to ensure perfect fits.
Integration with Digital Design Software: The ability to connect duct cutting machines with digital design software allows for real-time adjustments and optimizations, further enhancing the precision and efficiency of the cutting process.

Practical Tips and Best Practices for Implementing Pre-Insulated Duct Cutting Machines in Laboratories
For laboratories considering the use of pre-insulated duct cutting machines, there are several practical tips and best practices to keep in mind:


Training: Ensure that staff are adequately trained on the operation and maintenance of the machine. Regular training sessions can help maintain proficiency and safety.
Maintenance: Regular maintenance is crucial to keep the machine in optimal working condition. Follow the manufacturer’s guidelines for maintenance to ensure longevity and performance.
Integration: Consider how the machine can be integrated with existing systems. This may involve modifying existing infrastructure or purchasing additional tools to complement the machine.
Consultation: Consulting with industry experts can provide valuable insights and guidance. They can help ensure that the machine is the right fit for your laboratory’s specific needs and operations.

Embracing Effective Tools for Optimal Laboratory Management
In conclusion, the application of pre-insulated duct cutting machines in laboratories offers a range of benefits, from enhanced precision and efficiency to cost savings and environmental sustainability. By leveraging these advanced tools, laboratories can achieve optimal performance and compliance while protecting the health and safety of their staff. Investing in the right tools is not just about short-term gains but also about building a sustainable and efficient operational environment.

In today’s highly competitive HVAC industry, investing in the right equipment can make the difference between thriving projects and missed opportunities. One piece of machinery that has increasingly gained attention is the pre-insulated duct cutting machine. Designed to streamline the fabrication process, reduce material waste, and improve overall accuracy, these machines are touted as game-changers for contractors and manufacturers alike. However, before making a significant investment, it’s essential to understand how to calculate the return on investment (ROI) to ensure that the purchase aligns with your business goals. This article delves deeply into the factors that influence ROI on a pre-insulated duct cutting machine and offers a comprehensive guide to help you make an informed decision.

From labor savings to material efficiency, the impact of adopting advanced cutting equipment goes beyond the initial purchase price. If you are wondering how exactly embracing this technology translates into financial benefits, read on to get a clear picture of the key considerations and calculations that frame your ROI.

Understanding the Basics of a Pre-Insulated Duct Cutting Machine

Before diving into ROI calculations, it is crucial to understand what a pre-insulated duct cutting machine is and the value it brings to the production process. Essentially, this machine automates the cutting of duct segments that already have insulation attached, which is a vital component for thermal performance and noise reduction in HVAC systems. Traditionally, fabricating pre-insulated ducts was a complex, labor-intensive task that often involved manual cutting, measuring, and assembling—steps prone to errors and inconsistencies.

A pre-insulated duct cutting machine, on the other hand, leverages automation and precise controls to streamline these processes. Operators input specifications, and the machine executes cuts with clean edges, maintaining the integrity of both the duct material and its insulating layers. This results in faster production times, reduced scrap, and improved quality consistency.

Understanding this basic functionality clarifies why the machine can impact your operations. The automation eliminates many of the manual steps that consume workforce hours, minimizes the margin of error that often leads to rework, and standardizes product quality. These factors directly contribute to improved profitability but require thoughtful analysis to translate into an ROI figure.

Evaluating Initial Costs and Ongoing Expenses

Calculating ROI starts with a thorough assessment of both the upfront costs and the ongoing operational expenses tied to the pre-insulated duct cutting machine. The initial cost is typically substantial, including the purchase price, delivery, installation, and any required training for your staff. It is important to capture all these costs because they form the baseline investment from which ROI gains will be measured.

Beyond the initial purchase, the machine incurs ongoing expenses such as routine maintenance, consumables like blades or cutting tools, potential software updates, and energy consumption. Maintenance frequency and costs vary depending on the machine’s complexity and brand, but neglecting these can result in downtime or degraded performance, which indirectly affect your ROI negatively.

In addition to direct costs, consider the hidden expenses connected with integrating the machine into existing workflows. This might involve workflow redesign, retraining personnel beyond initial instruction, or temporary productivity dips during the transition period. These must be factored into your overall cost calculations to avoid underestimating your investment.

A typical budgeting approach involves creating a multi-year forecast of all related costs and then comparing this to the expected gains. This sets the stage for accurately determining how long it will take for the machine to pay for itself and start generating net profit.

Quantifying Labor Savings and Efficiency Gains

One of the most tangible benefits a pre-insulated duct cutting machine offers is the reduction in time and labor required to fabricate ducts. By automating several manual steps, this equipment can drastically cut down the number of man-hours per project. To understand this benefit in your ROI calculation, begin by documenting your current labor expenses related to duct fabrication.

Calculate the number of hours your workers spend measuring, cutting, fitting, and verifying each piece manually. Multiply these hours by the hourly wage rates to arrive at a baseline labor cost. Next, estimate how much time the machine can save by comparing the cycle times for manual versus automated cutting. The difference translates to a direct reduction in labor hours.

Beyond just saving time, automation tends to improve consistency, which means fewer mistakes and less time spent on rework or scrap processing. Incorporate these gains into your efficiency estimates since reducing errors typically frees up additional labor hours elsewhere.

These labor savings not only lower operating costs but can also allow you to take on more projects or meet tighter deadlines, potentially expanding your revenue opportunities. When quantified appropriately, the cost reductions and efficiency improvements form a major component of ROI. Moreover, labor savings can drastically alter your overall production capacity, pushing your business toward higher profitability.

Assessing Material Waste Reduction and Cost Savings

Material costs are a significant part of duct fabrication expenses, especially when working with pre-insulated materials that tend to be pricier than traditional metals alone. A pre-insulated duct cutting machine’s precision can dramatically reduce waste by cutting ducts to exact dimensions, preserving insulation integrity, and minimizing offcuts.

Waste reduction happens on multiple fronts. First, accurate cutting limits overuse or damage to expensive insulation layers. Second, because the machine provides consistent, repeatable cuts, you avoid the guesswork and human errors that lead to scrap pieces. Third, optimized cutting paths programmed into the machine can maximize material usage, squeezing more ducts out of a raw material sheet.

To embed material savings into your ROI calculation, track the current scrap rate and the associated costs of wasted material. Estimate the reduction in scrap that transitioning to automated cutting would realistically offer. Finally, quantify these material savings in monetary terms.

Remember that lower material waste can also contribute indirectly to sustainability goals and compliance with environmental regulations, which, while harder to measure in pure financial terms, can improve your brand reputation and open doors to green contracts or incentives.

Calculating Increased Production Capacity and Revenue Potential

When evaluating ROI, it’s important not just to consider cost savings, but also potential revenue growth enabled by increased production capacity. The speed and efficiency improvements delivered by a pre-insulated duct cutting machine can enable your business to process more orders within the same timeframe. This increased throughput capability can translate to new revenue streams.

To quantify this potential, review your current production output limits and how often capacity constraints prevent you from accepting additional projects or completing urgent jobs. With automation, these constraints often ease, allowing for faster turnaround and larger project volumes.

Estimate the potential increase in the number of projects or ducts produced monthly or yearly after installing the machine. Multiply this by your average project or unit revenue to gauge possible additional income. Keep in mind that realizing this extra revenue depends on your market demand and sales pipeline—without sufficient demand, increased capacity alone won’t boost revenue.

Furthermore, faster delivery times can enhance customer satisfaction and loyalty, leading to repeat business and positive referrals. These qualitative benefits may not easily fit into a straightforward ROI calculation, but they contribute valuably to your business’s financial health.

Factoring in Depreciation, Financing, and Payback Period

A realistic ROI assessment must also consider the financial aspects related to asset depreciation and financing terms. The machine’s value will depreciate over time either via straight-line or accelerated depreciation methods, impacting your accounting expenses and tax obligations. Understanding how depreciation schedules affect your financial statements can provide a more accurate picture of profitability.

If you plan to finance the machine through loans or leasing arrangements, monthly payments, interest rates, and financing fees must be incorporated into your ongoing cost structure. These will affect your net cash flows and alter the timing of your investment payback.

Additionally, calculating the payback period—the length of time required for cumulative gains to equal your initial investment—is critical. A shorter payback period generally indicates a more attractive investment, especially if cash flow constraints are a concern.

By incorporating depreciation and financing costs, alongside cost savings and revenue enhancements, you ensure that your ROI assessment reflects the full economic reality of acquiring a pre-insulated duct cutting machine.

In conclusion, calculating the ROI on a pre-insulated duct cutting machine involves a comprehensive evaluation of multiple interrelated factors. Understanding the machine’s capabilities sets the foundation, highlighting how automation translates into operational benefits. A careful appraisal of initial and ongoing costs against the reductions in labor and material expenses paints a clear financial picture. Factoring in increased production capacity and revenue potential further enriches the analysis, while considerations of depreciation and financing ground the calculation in practical finance parameters.

By methodically assessing each element, contractors and manufacturers can make informed investment decisions that align with their strategic objectives. Ultimately, a well-calculated ROI gives confidence that adopting a pre-insulated duct cutting machine will not only enhance productivity but also drive sustained profitability and competitive advantage in this evolving market landscape.

In modern construction and HVAC applications, achieving optimal energy efficiency and maintaining indoor air quality are paramount. One key innovation that has gained widespread acceptance is the pre-insulated duct system. Tailored for enhanced performance and durability, these duct systems are revolutionizing how heating, ventilation, and air conditioning networks are designed and installed. But what exactly goes into these advanced systems that make them so efficient and reliable? Understanding the components of a pre-insulated duct system reveals the intricacies that contribute to its effectiveness, offering insights that could inform better choices in building infrastructure.

From residential projects to large commercial complexes, the components embedded within pre-insulated duct systems play a crucial role in delivering consistent airflow while minimizing energy losses. This article will guide you through the essential elements that form these systems, explaining their functions, materials used, and how they collectively contribute to a seamless HVAC operation. Whether you’re an industry professional or an informed homeowner, gaining a comprehensive understanding of these components will provide valuable knowledge about what lies beneath those sleek ducts in your walls and ceilings.

Primary Duct Core

At the heart of any pre-insulated duct system lies the primary duct core, which serves as the conduit for air travel throughout the building. Typically constructed from galvanized steel or aluminum, this core forms the physical pathway by which conditioned air flows to various spaces. The choice of material for the core carries significant implications for durability, corrosion resistance, and ease of maintenance. Steel cores offer robustness and excellent rigidity, making them suitable for large-scale systems subjected to high-pressure airflow. Aluminum cores, on the other hand, are lighter and better suited to environments where corrosion might be a concern or where weight limits are in place.

The core duct also often features a smooth internal surface, which minimizes air resistance and promotes efficient airflow. This smoothness is fundamental in reducing noise levels generated by turbulent air, enhancing the comfort of building occupants. Moreover, advanced ducts may include antimicrobial linings inside the core to prevent the buildup of mold and bacteria, contributing to healthier indoor environments.

An important factor in evaluating the primary duct core is its structural integrity, including its resistance to deformation under pressure. This ensures consistent cross-sectional area throughout the duct, preventing pressure drops that would otherwise lead to inefficient HVAC operation. Consequently, this base component not only facilitates air movement but also influences the overall energy performance of the HVAC system. Understanding the materials and engineering that go into the duct core sets the foundation for appreciating the additional layers that make the system pre-insulated and highly functional.

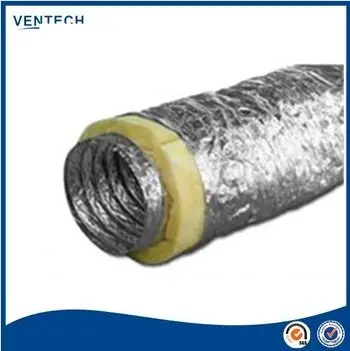

Insulation Layer

Perhaps the most defining characteristic of a pre-insulated duct system is the presence of the insulation layer encasing the duct core. This layer serves multiple critical functions, foremost among them being the reduction of thermal exchange between the conditioned air inside the duct and the external environment. By limiting heat gain or loss, the insulation allows HVAC systems to operate with greater energy efficiency, as less external heat permeates the duct, and conditioned air maintains its desired temperature as it travels through the network.

The insulation materials used in these systems are carefully selected based on their thermal resistance (R-value), durability, and moisture resistance. Common insulation materials include polyurethane foam, fiberglass, and mineral wool. Polyurethane foam offers a rigid, closed-cell structure that is highly effective in providing an airtight and waterproof barrier. This material is particularly valued in pre-insulated ducts due to its excellent thermal insulation properties and longevity without deterioration.

Equally important is the insulation’s role in preventing condensation on the outer surface of the ducts. When air inside the duct is cooler than the surrounding air, moisture tends to collect on the duct’s exterior in systems lacking proper insulation. This collected moisture can lead to corrosion over time and promote the growth of mold, both of which are detrimental to the system’s lifespan and indoor air quality. By incorporating an effective insulation layer, pre-insulated ducts can minimize these risks significantly.

Hence, the insulation layer is not merely a passive barrier but an active contributor to both energy conservation and system durability. Its choice and application directly influence how well the system performs in varying climatic conditions and long-term operational scenarios.

Outer Protective Jacket

The outer protective jacket is the external shell wrapped around the insulation layer, performing a dual role of physical protection and aesthetic enhancement. This component safeguards the insulation from mechanical damage during transportation, installation, and everyday operation. Its robustness is essential, especially in installations where ducts might be exposed to potential impacts or abrasion, such as in basements, mechanical rooms, or industrial facilities.

Manufacturers typically produce these jackets using materials like aluminum foil, galvanized steel, or PVC-coated fiberglass fabrics. Aluminum foil jackets are popular due to their lightweight nature and ability to reflect radiant heat away from the duct surface, contributing further to the system’s insulation effectiveness. Galvanized steel jackets provide superior mechanical protection and are often chosen for environments prone to chemical exposure or extreme physical demands. PVC-coated fabrics, meanwhile, are flexible and resistant to moisture, chemicals, and UV rays, making them ideal for outdoor or harsh environments.

Beyond protection, the outer jacket also helps maintain the integrity of the insulation layer by shielding it against environmental factors such as dust, dirt, and moisture ingress. By preventing the accumulation of contaminants, the jacket contributes to extending the lifespan of both insulation and primary duct core. Additionally, the jacket’s design often includes features that facilitate easy connection to other duct system components, such as interlocking seams or flanged edges.

Visually, the outer jacket can provide a neat and uniform appearance, which can be particularly valuable in exposed duct installations where aesthetics matter. Thus, the outer protective jacket combines durability, environmental resistance, and aesthetic appeal, making it an indispensable component of pre-insulated duct systems.

Sealing and Joint Components

Sealing and joint components form the critical interfaces where duct sections connect, ensuring the system performs as a cohesive unit. These components are designed not only to mechanically attach different duct segments but also to prevent air leakage, which can significantly impair HVAC efficiency and increase operating costs.

Effective sealing is achieved through a combination of gaskets, sealants, and specialized joint profiles that accommodate thermal expansion and contraction without compromising airtightness. Elastomeric gaskets are commonly used because of their flexibility and ability to maintain a tight seal across a range of temperatures and pressures. Sealants such as silicone or butyl rubber are applied between mating surfaces to fill gaps and prevent infiltration of air or moisture.

The joints themselves may be designed as snap-locks, flanges, or sleeve connections, depending on the application and installation requirements. Snap-lock joints offer quick assembly and disassembly, making them a favorite in modular HVAC systems. Flanged joints provide additional structural strength and are often bolted to ensure a secure connection in high-pressure scenarios. Sleeve connections, which involve sliding one duct segment inside another, offer a straightforward approach with end seals to prevent leakage.

In addition to enhancing system performance, properly designed sealing and joint components contribute to noise reduction by eliminating gaps through which sound can propagate. They also simplify maintenance and future expansion of the duct network, allowing individual sections to be replaced or modified without dismantling large portions of the system.

Given this, these components play an indispensable role in preserving the integrity and efficiency of pre-insulated duct systems, highlighting the importance of precision engineering in their design and installation.

Support and Suspension Elements

An often-overlooked yet fundamental aspect of pre-insulated duct systems is the network of support and suspension elements that maintain the duct’s position and alignment within a building structure. These components are vital for ensuring the stability of the ductwork, preventing sagging, deformation, or failure over time, which could lead to airflow restrictions or physical damage.

Support elements commonly include brackets, hangers, rods, and clamps, each selected based on the duct size, weight, and installation environment. These supports are typically fabricated from corrosion-resistant materials such as stainless steel or galvanized steel to withstand long-term exposure to temperature variations and moisture.

The positioning and spacing of these supports are carefully engineered to distribute the weight of the ducts evenly, reducing stress points and minimizing vibration transmission to the building structure. Vibration isolators or resilient hangers are sometimes incorporated into the suspension system to dampen noise caused by HVAC equipment or air turbulence within the ducts.

Proper installation of support and suspension systems is crucial for maintaining the performance and longevity of pre-insulated duct systems. Over time, ducts that are inadequately supported may experience joint failure, insulation compression, or even detachment from their intended paths, leading to costly repairs and system downtime.

Therefore, support and suspension elements, though often unseen and unappreciated, are integral to the seamless operation and safety of HVAC networks utilizing pre-insulated ducts. Their design reflects an important intersection between structural engineering and HVAC system requirements.

In conclusion, comprehending the components that make up a pre-insulated duct system reveals the thoughtful integration of materials and engineering principles aimed at optimizing HVAC performance. The primary duct core provides a durable and efficient air pathway, while the insulation layer ensures thermal efficiency and moisture control. The outer protective jacket guards against physical and environmental damage, and precise sealing and joint components maintain airtightness and system integrity. Finally, the support and suspension elements ensure stability, longevity, and silence in operation. Together, these components form a sophisticated system designed to enhance both comfort and energy savings in modern buildings.

Understanding these elements is more than just a technical exercise; it is a practical guide to making informed decisions in selecting, installing, and maintaining HVAC ductwork. As energy efficiency standards grow increasingly stringent and occupant well-being takes center stage, investing in well-designed pre-insulated duct systems and appreciating their components is a step toward sustainable and healthy building environments.
