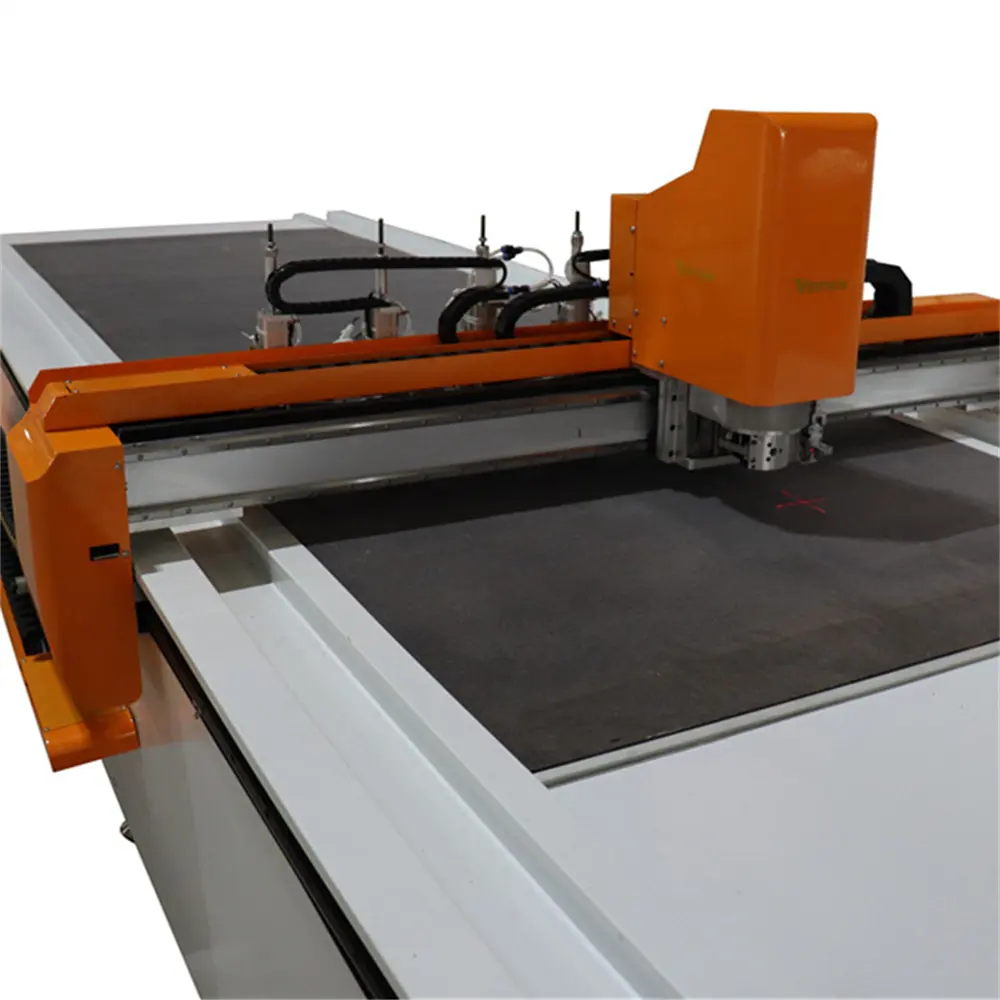

High Quality Duct Board Cutting Line From VENTECH
duct board cutting line produced by YINGDE VENTECH INTELLIGENT EQUIPMENT CO., LTD. is hot in the market now. Purchased from our reliable suppliers, the raw materials for manufacturing the product are strictly selected and totally guarantee the quality from the source. The design style is unique, which contributes to the increasing popularity of the product. Moreover, produced by state-of-the-art technology, the performance of the product is predominant and the quality is superior.
In the design of duct board cutting line, YINGDE VENTECH INTELLIGENT EQUIPMENT CO., LTD. makes full preparation including market survey. After the company makes an in-depth exploration in the customers' demands, innovation is implemented. The product is manufactured based on the criteria that quality comes first. And its lifetime is also extended to achieve a long-lasting performance.
The duct board cutting line is a precision machinery essential for cutting duct boards in HVAC systems, ensuring consistent dimensions and clean cuts. It streamlines production workflows by reducing manual labor, thereby enhancing output quality. This equipment is indispensable for modern ventilation system fabrication.
How to choose duct board cutting line?
Looking to streamline the cutting process for duct boards in HVAC installations or industrial projects? The duct board cutting line is the ideal solution! It offers precision, speed, and reliability, making it perfect for both large-scale manufacturing and on-site adjustments.
- Precision Engineering: Achieves exact cuts for seamless duct assembly, reducing rework and material waste.
- High Efficiency: Automates cutting tasks, significantly boosting productivity and reducing labor costs.
- Versatile Material Handling: Compatible with various duct board types, including fiberglass-reinforced and foam-core boards.
- User-Friendly Design: Features intuitive controls and safety mechanisms for easy operation and operator protection.
no data
Browse detailed product page and contact Customer Service before you place an order on industrial fabric cutting machine. Customer Services Support is available during its service lifetime. And the customer service team will guarantee the supply of fast, professional support.
These years, YINGDE VENTECH INTELLIGENT EQUIPMENT CO., LTD. has offered customized foam cutting machine solution for clients from different countries. VENTECH INTELLIGENT EQUIPMENT's fabric cutting machine is various in types and styles to meet the different needs of customers. Quality inspection for VENTECH fabric cutting machine includes several parts: formaldehyde emission amount, harmful substances emitted from the adhesives, as well as the carcinogenic in the paint. This product features high precision with the help of the micro-computer. This product will perfectly match other designs been developed such as color of the wall, floor (whether it’s having wooden texture, tiled or granite so on), luxurious lamps and other lightings. The product has the ability to generate repeated accuracy.
Our mission is to improve customer satisfaction every day by offering innovative products awarded with top certifications and designed in every detail to offer top quality products and unrivaled services – to make the difference.
These years, YINGDE VENTECH INTELLIGENT EQUIPMENT CO., LTD. has offered customized foam cutting machine solution for clients from different countries. VENTECH INTELLIGENT EQUIPMENT's fabric cutting machine is various in types and styles to meet the different needs of customers. Quality inspection for VENTECH fabric cutting machine includes several parts: formaldehyde emission amount, harmful substances emitted from the adhesives, as well as the carcinogenic in the paint. This product features high precision with the help of the micro-computer. This product will perfectly match other designs been developed such as color of the wall, floor (whether it’s having wooden texture, tiled or granite so on), luxurious lamps and other lightings. The product has the ability to generate repeated accuracy.
Our mission is to improve customer satisfaction every day by offering innovative products awarded with top certifications and designed in every detail to offer top quality products and unrivaled services – to make the difference.
Please let YINGDE VENTECH INTELLIGENT EQUIPMENT CO., LTD. know which method of transportation is to be taken. This is a consideration in different pricing. CFR (= Cost and Freight) is a term used strictly for goods transported by sea or inland waterways. When the sale is made CFR, the seller is required to arrange for the carriage of goods by sea. Under CFR, we do not have to procure marine insurance against the risk of loss or damage to cnc laser cutting machine during transit. You are expected to contact us first to ascertain the order quantity. Then you may be advised in choosing transportation method and quotation then will be made.
VENTECH INTELLIGENT EQUIPMENT is one of the well-known enterprises in China. We have outstanding performance in R&D and manufacturing factory automation. foam cutting machine is the main product of VENTECH INTELLIGENT EQUIPMENT. It is diverse in variety. automatic machine has shown virtues like automation equipment. The working speed of this product can be easily set in line with requirements. The development prospects of this product are recognized by most customers. Its heavy-duty design makes it strongly withstand extreme temperature variations.
We uphold high ethical standards that are built on the commitment to its customers. We insist truth-in-selling, that's to say we are obligated to deliver the real and pre-described products to the customer.
VENTECH INTELLIGENT EQUIPMENT is one of the well-known enterprises in China. We have outstanding performance in R&D and manufacturing factory automation. foam cutting machine is the main product of VENTECH INTELLIGENT EQUIPMENT. It is diverse in variety. automatic machine has shown virtues like automation equipment. The working speed of this product can be easily set in line with requirements. The development prospects of this product are recognized by most customers. Its heavy-duty design makes it strongly withstand extreme temperature variations.
We uphold high ethical standards that are built on the commitment to its customers. We insist truth-in-selling, that's to say we are obligated to deliver the real and pre-described products to the customer.
How to fabricate and install PIR Pre-insulated duct system Part Two
Production of variable diameter duct
The reducing pipe of the rectangular air duct has two types: single-sided eccentricity and double-sided eccentricity. The angle φ of the single-sided variable diameter should be less than 30%, and the included angle of the double-sided variable diameter should be less than 60%. The production method of the variable diameter duct is the same as that of the straight duct, and one or three sides of the duct plate are inclined. , its assembly method is as shown in the figure, the length of the variable diameter air duct shall not be less than the difference between the long side of the big head minus the long side of the small head.
Production of three ventilation pipes
According to the design size, the opening size of the connecting port of the cutting air duct on the main air duct and the upper and lower plates of the branch air outlet is increased by 6mm for the inner wall of the branch air duct. The size of the opening at the connection with the left and right plates of the branch duct is the wall size of the branch duct. As shown in the figure, a 45% diversion angle should be set in the downwind direction, and the length of the diversion angle should not be less than half of the width of the branch duct , Cut the upper and lower plates connecting the branch air duct and the main air duct into a stepped shape, and the left and right plates are not cut into a stepped shape. If the height of the branch air duct is the same as that of the main air duct, the upper and lower plates of the main air duct and the upper and lower plates of the branch air duct are connected as a whole, which is convenient to manufacture and has high strength of reducing diameter.
Insert the branch pipe into the main air pipe, glue it with special glue, then tie it in place, clean up the excess glue, fill the gap, and put it on a flat place to cure.
Four ventilation pipes refer to the manufacturing method of three ventilation pipes;
Air-conditioning duct (wall thickness 25mm) board with a board ≥ 20cm can be used for the upper board with a long side ≤ 600mm.
Smoke prevention and exhaust air duct (wall thickness 18mm) board ≥ 20cm can be used for the production of the upper board of the air duct with the long side ≤ 1500mm.
The inside and outside of the air duct should be clean and smooth, and there should be no residual slurry. The residual slurry on the inner wall of the surrounding corner joints should not be higher than the plane 1.5mm;
The pipe body should be able to withstand 1m high, 5kg sandbags fall freely, impact 3 times without breaking the pipe body.
Duct reinforcement
When the side length of the air duct is greater than or equal to 1250mm, vertical and horizontal internal support and reinforcement should be carried out according to the working pressure of the air duct. The reinforcement is determined according to the following table, and the longitudinal reinforcement is set at a distance of 1300mm.
