Pre insulated duct board cutting machine

这里可以自定义设置
Pre insulated duct board cutting machine
B站不支持收货地址
B站不支持库存规格
Lead_Time
1 - 1(Pieces):25(days),>1(Pieces):Negotiable(days)
shipping
Support Sea freight · Land freight
Customization
Customized logo (Min. Order: 10 Pieces),Customized packaging (Min. Order: 10 Pieces),Graphic customization (Min. Order: 10 Pieces)
Model Number
Other
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Showroom Location:None
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Marketing Type:New Product 2020
Warranty of core components:1 Year
Core Components:PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Brand Name:VENTECH
Condition:NEW
Applicable Industries:Manufacturing Plant, Construction works
Weight:5000 kg
Place of Origin:Guangdong, China
Warranty:1 Year
Key Selling Points:Easy to Operate
Material:Composite material
Usage:for Air Conditioning
Cutting Shapes:Elbow, Shoe, straight cut etc.
Fuction:Cutting phenolic duct parts
Cutting size:4000x1300mm
Material thickness:≤30mm
Cutting Tolerance:0.2mm
Supply Voltag:AC220V, 380V 50Hz
After Warranty Service:Online support
After-sales Service Provided:Online support
Video Description
Company Information

 Pre insulated duct board cutting machine









Product Description

 Pre insulated duct board cutting machine

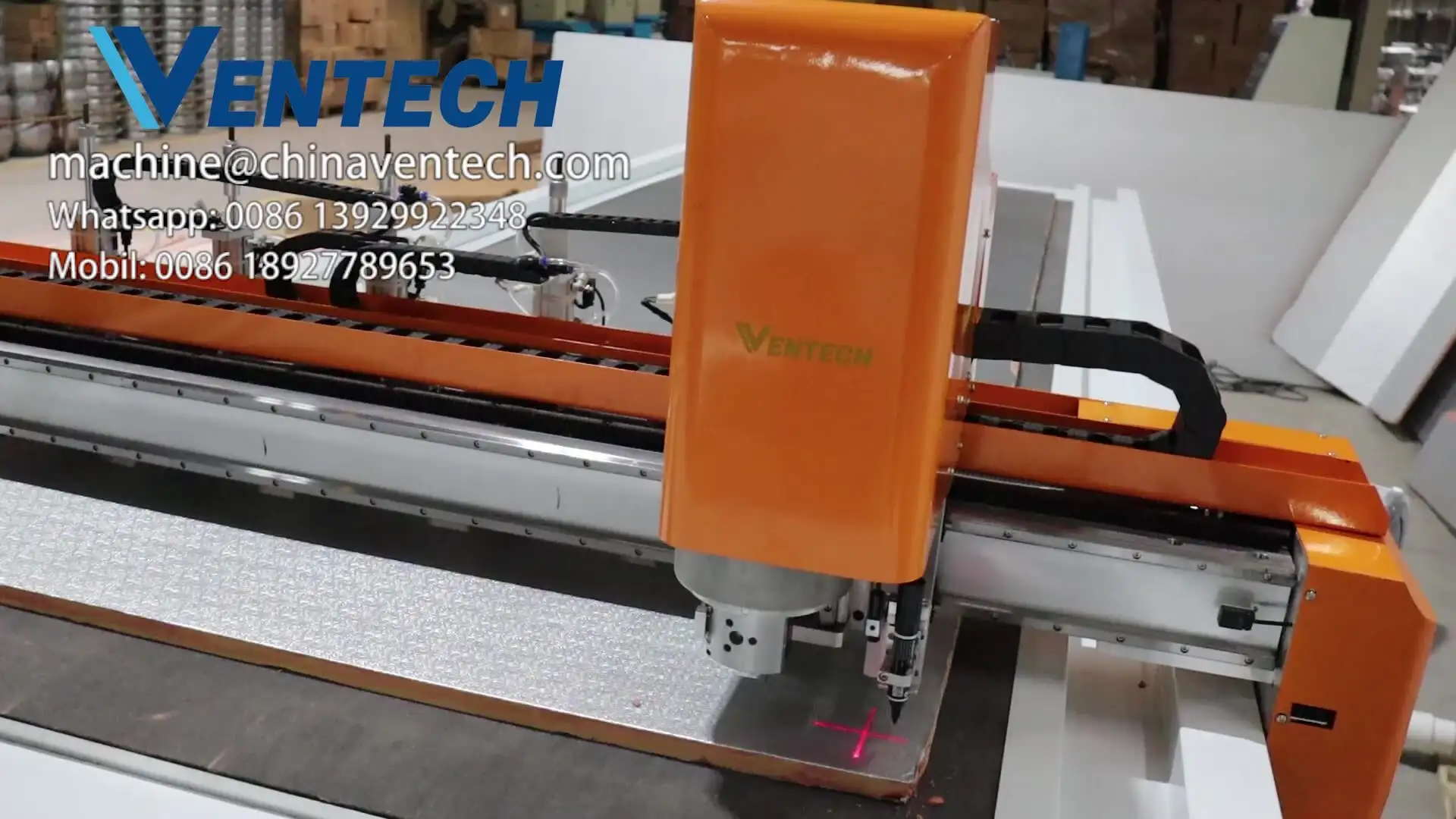

Ventech pre insulated duct cutter is fully automatic and ECO Fast CNC machine, totally designed by our own. CNC PID fabrication cutting Machines are manufactured with the latest technologies. They cut straight and special parts from insulation panels, used in the fabrication of pre-insulated HVAC ductwork and duct & pipe insulation.



With our simple and smooth operating system, the complex graphics and product can be easily, precisely, and rapidly cut and produced. Our unique version of software brings you a complete solution for revolutionizing the manufacturing of insulated ductwork within the HVAC industry. our specifically designed enclosed automatic tool changer, V grooving and cutting the panel shape can be done in one process, giving massive savings in all aspects. It comes with an extensive parametric library of ducting components allowing full control of the panel configuration and dimensions. All phenolic panels can be nested to maximise sheet usage and reduce material cost. A simple click of the mouse transforms the nested files directly to CNC Routing Machine ready for processing. Once the machine receives the program the components are then produced exactly to specification whether it is a simple "one off" or mass production.



Excellent Graphics

Pre insulated duct board cutting machine



Advanced automatic computing capabilities and automation technologies eliminate the traditional labor-intensive work required to produce air duct panels, and no longer need to manually mark, create templates, or use Hand-held tool for cutting.



The duct cutter permits to obtain finished pieces for ducts in pre-insulated; no more hand operations and bendings to do, the pieces obtained are ready to be glued. The standard machine is completed with a large quantity of accessories and devices dedicated to reduce the production time and generate the best quality of finished product.



With a big working size 4000x1300mm, a phenolic foam board can be fully utilized. As a result, production efficiency has been greatly improved, material scrap has been reduced, and production costs have been saved for duct fabrication. It can cut different shapes in one time, such as elbow type, shoe type, Y type, reducer, etc.



The customers are satisfied with this CNC duct rounting machine, especially compared to the other main brands in the market, we are stable and fast, and with higher cost-effective. The long cooperation and support make our improving more and more.
pre insulated duct.



Except for phenolic duct panel cutting, other applications include: routing and V-grooving aluminum-polymer composite material, fibreglass (fiberglass) insulation, PVC, PU, PIR foam duct panels for air conditioning and HVAC system.



Pre insulated duct board cutting machine



Advantage

- Rapid manufacture of ducting components.
- Simple or complex shapes produced with ease.
- Increased flexibility.
- Increased Accuracy
- Increased Repeatability
- Reduced Material Waste
- Reduced Lead Times

- Reduced production cycle times.
- Complicated panels made easy
- No second cuts
- No mistakes
- Panels come off machine perfect, ready for joining
- Any shape, curves angle or straight
- Complete Dust Removal





Packaging & Shipping
size(m) weight (kg)
5.3 x 2.17 x 1.63 1730









Our Services

 Pre insulated duct board cutting machine









WHY CHOOSE US?

Pre insulated duct board cutting machinePre insulated duct board cutting machinePre insulated duct board cutting machine

Pre insulated duct board cutting machine Pre insulated duct board cutting machine Pre insulated duct board cutting machine Pre insulated duct board cutting machine Pre insulated duct board cutting machine

The product has achieved great success in the market due to its good characteristics, affordable price, and great market potential. Easy to care for, this product helps save maintenance costs for factory owners. The product has been praised by the customers in the global market and become more applicable. Easy to care for, this product helps save maintenance costs for factory owners.
