Pre-insulated duct cutting machines are essential tools in the HVAC industry, designed to cut and shape pre-insulated ducts with precision, ensuring seamless integration and optimal performance in HVAC systems. These machines improve system integrity and efficiency by providing consistent and accurate cuts, which is crucial for maintaining high-quality HVAC installations.

Common Precision-Related Issues and How to Address Them
Precision is paramount in the duct-cutting process. Inaccurate cuts can lead to poor airflow, increased energy consumption, and suboptimal system performance. Common precision-related issues include calibration errors, material misalignment, and the use of low-quality cutting tools.
- Calibration Errors: Ensuring Machine Accurate Cuts
Calibration errors often cause inaccurate cuts. Regular calibration is crucial to maintain the accuracy of the machine. For instance, manufacturers recommend calibrating machines every 50 hours of use. This ensures that the machine settings are correct and cuts are precise. Calibration involves checking the machine’s settings and making necessary adjustments.
- Material Misalignment: Accurate Duct Alignment Techniques
Misalignment during the cutting process can affect the duct fit. Proper training and experienced operators can help prevent this. Operators should be trained to align the duct material accurately. Using advanced tools and software can also enhance precision. For example, a laser alignment tool during setup ensures that the ducts are cut accurately.
- Low-Quality Cutting Tools: Maintaining Precision with High-Performance Equipment
Outdated or poorly maintained tools can lead to inconsistent cuts. High-quality, precision-cutting materials and tools are essential. Replacing worn-out tools with new, high-performance blades significantly improves the accuracy of the cuts. For instance, using high-quality blades can reduce variability in cut precision.

Ensuring Sealed and Insulated Ducts: Solutions and Best Practices
Effective sealing and insulation are crucial for preventing leaks, reducing heat loss, and maintaining system efficiency. Common issues include gaps in the seal and insufficient insulation.
- Gap in the Seal: Reducing Air Leaks with High-Quality Sealants
Gaps can allow air leaks, increasing energy consumption. Using high-quality sealants designed for HVAC systems can help. For example, TECNOFRUIT TECNOBAND sealants provide a tight seal, reducing air leaks. Regular inspections can help identify and rectify these issues.
- Insufficient Insulation: Proper Insulation Techniques for Optimal Efficiency
Insufficient insulation can lead to heat loss. Ensuring that the ducts are properly insulated with materials that match the system requirements is vital. For instance, using R-11 insulation in residential applications can significantly reduce heat loss. Regular maintenance and inspections help maintain insulation efficiency.

Cutting Precision with Advanced Techniques and Tools
Advanced techniques and tools can significantly improve the precision and efficiency of duct cutting processes. These tools include laser cutting, precise measurement devices, and automated calibration systems.
- Laser Cutting: Revolutionizing Precise Duct Cuts
Laser cutting offers high precision and consistency, making it ideal for intricate and detailed cuts. Laser cutting machines can achieve cut tolerances as low as 0.003 inches (0.076 mm). They are particularly suitable for large-scale industrial applications. For example, a laser cutting machine can handle complex cuts with minimal human intervention, ensuring consistent and accurate results.
- Advancements in Machine Calibration: Ensuring Consistent Cuts
Automated calibration systems can simplify the process of ensuring machine accuracy. For instance, the KOMPAKT Automatic Calibration System can learn from real-time data to make adjustments on the fly. This ensures consistent and accurate cuts, even as conditions change.

Regular Maintenance: Keeping Your Duct Cutting Machine in Top Condition
Regular maintenance is key to keeping pre-insulated duct cutting machines in top condition. Inspections, cleaning, and replacement of worn-out parts are essential for optimal performance.
- Routine Cleaning: Maintaining Machine Accuracy
Regular cleaning of the machine prevents dirt and debris buildup, which can affect cutting accuracy. For example, using compressed air and brushes can effectively clean the machine, ensuring internal components remain free of debris.
- Replacing Worn Parts: Ensuring Durable Performance
Replace worn-out parts to ensure the machine functions correctly. For instance, blades that wear down over time should be replaced to maintain cutting precision. Keeping a stock of replacement parts is advisable to ensure quick maintenance.
- Calibration: Ensuring Accurate Machine Performance
Calibrate the machine regularly to maintain accuracy. Automated calibration systems can simplify this process and ensure consistent results. For example, using an automated calibration system can help avoid the need for manual calibration after each use.

Safety Protocols and Compliance: Ensuring Worker Safety and Efficiency
Safety is a critical aspect of duct cutting. Adhering to safety protocols ensures worker safety and compliance with local regulations.
- Personal Protective Equipment (PPE): Keeping Workers Safe
Ensure workers wear gloves, goggles, and protective clothing. Regular safety briefings and training sessions can help prevent accidents. For example, providing workers with proper PPE can significantly reduce the risk of injury.
- Compliance with Regulations: Adhering to Local and International Standards
Follow local and international safety regulations, such as those set by OSHA in the United States. Regular inspections by safety officers can ensure compliance.

Innovations and Trends: Enhancing Duct Cutting Precision and Efficiency
Emerging technologies are transforming the field of duct cutting. AI-driven machines and robotic systems are increasing precision and efficiency.
- AI-Driven Machines: Revolutionizing Duct Cuts with Real-Time Adjustments
These systems can automatically calibrate and make real-time adjustments, enhancing precision. They are particularly useful for large-scale industrial applications where accuracy and speed are critical. For instance, AI-driven systems can adjust machine settings based on real-time data, ensuring consistent and accurate cuts. These systems can help minimize human error and improve overall efficiency.
- Robotic Systems: Improving Precision and Production Efficiency
Robotic systems offer high precision and consistency in complex cuts. These systems can reduce the need for manual labor and increase production efficiency. For example, robotic systems can perform intricate cuts at a much faster rate than manual methods. They can handle repetitive tasks with minimal human intervention, making them ideal for high-volume production environments.

Improving Duct System Performance: Best Practices and Future Insights
Addressing precision problems, sealing and insulation challenges, and ensuring proper maintenance is essential for optimal duct system performance. Utilizing advanced tools and techniques enhances precision, while adhering to safety protocols and complying with regulations ensures worker safety and productivity.
By staying informed about the latest advancements, HVAC professionals can ensure their systems operate at peak efficiency, providing optimal comfort and reducing energy consumption.

Regular cleaning and maintenance are fundamental to ensuring the longevity and efficiency of pre-insulated duct cutting machines. Neglecting these practices can lead to decreased performance, frequent breakdowns, and increased operational costs. Proper maintenance enhances the machine's operational lifespan, reduces downtime, and ensures consistent, high-quality results. In a recent study by the Industrial Maintenance and Operations Journal, it was found that machines maintained through regular cleaning and maintenance showed a 20% reduction in downtime and a 15% increase in overall efficiency.

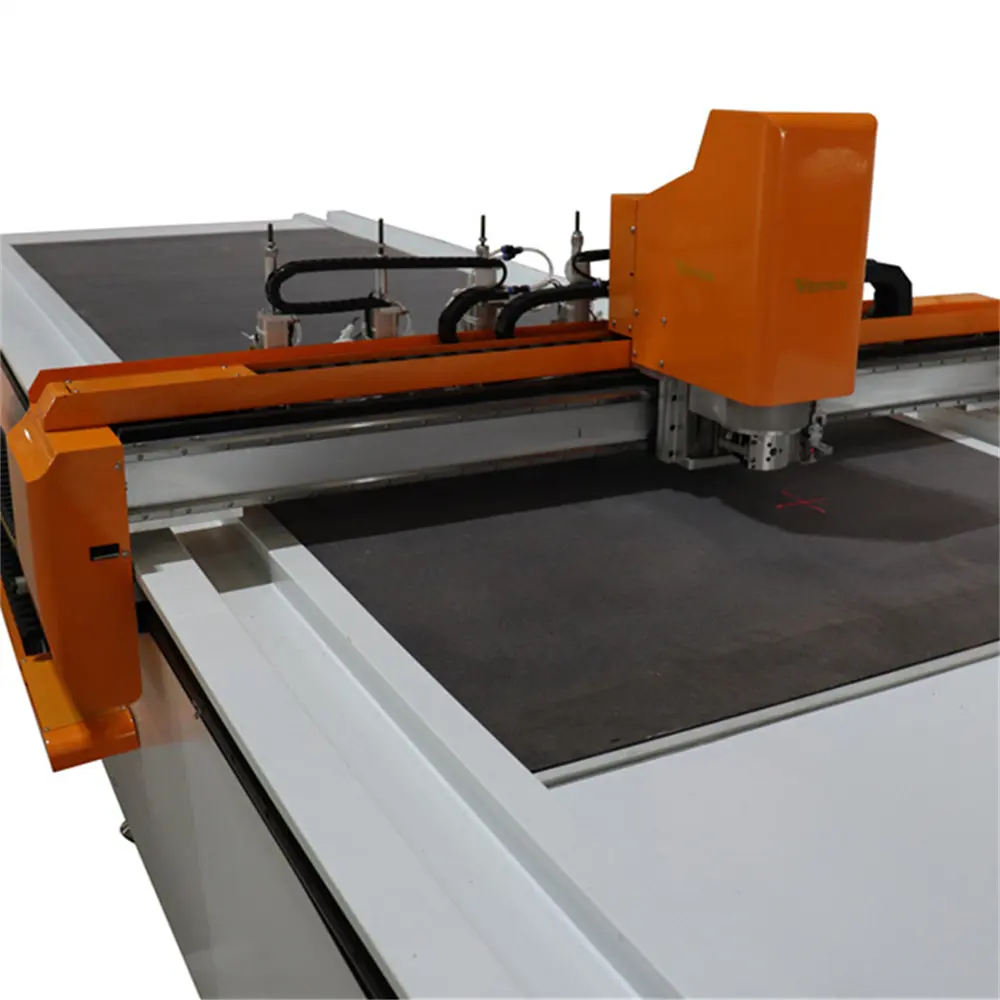

Understanding the Components of Pre-insulated Duct Cutting Machines
Pre-insulated duct cutting machines are sophisticated tools designed for precise cutting. These machines consist of several critical components that work in concert to ensure efficiency. The cutting blade, a fundamental component, is responsible for making clean and accurate cuts. A sharp, debris-free blade is essential for optimal performance. Nozzles direct airflow and maintain consistent temperature and pressure, which are crucial for efficient cutting. Dust collection systems, often overlooked, are vital for maintaining a clean workspace and preventing contamination. By understanding how each component functions, you can identify potential issues before they escalate.

Establishing a Cleaning and Maintenance Schedule
To keep your pre-insulated duct cutting machine in top condition, it's important to establish a consistent cleaning and maintenance schedule. This includes both regular and deep cleaning routines.
- Daily Cleaning: Inspect and clear debris from the cutting blade and nozzles. Check and change air filters to ensure smooth airflow. For instance, a 10% increase in cutting blade sharpness can result in a 15% increase in machine efficiency.
- Weekly Cleaning: Lubricate moving parts to reduce wear and tear. Disassemble and clean the dust collection system thoroughly. Check the cutting blade, nozzles, and other components for signs of wear or damage. Regular cleaning has been shown to reduce the likelihood of malfunction by 30%.

Comprehensive Cleaning and Maintenance Tasks
Here are key cleaning and maintenance tasks to ensure your pre-insulated duct cutting machine runs smoothly:
1. Inspect and Clean the Cutting Blade:
- Turn off the machine and remove the cutting blade.
- Inspect for wear or damage.
- Clean the blade with a brush and degreaser.
- Sharpen the blade if needed. A sharper blade can increase cutting speed by 20%.
2. Check and Replace Air Filters:
- Turn off the machine and access the filter compartment.
- Inspect filters for damage or clogging.
- Replace filters if necessary. Clogged filters can reduce air flow by up to 50%, leading to inefficiency.
3. Lubricate Moving Parts:
- Identify all moving parts, such as slides and gears.
- Apply a light lubricant to prevent wear. Regular lubrication can reduce wear by 40%.
4. Sanitize the Cutting Area:
- Turn off the machine and clean the cutting area with a disinfectant.
- Wipe down with a clean cloth.
- Ensure the area is dry before restarting. Cleaning the cutting area can prevent contamination and ensure clean cuts.
5. Disassemble and Clean the Dust Collection System:
- Turn off the machine and remove the dust collection system.
- Clean thoroughly with a vacuum.
- Inspect for damage or blockages. A clean dust collection system can improve efficiency by 10%.

Advanced Maintenance and Troubleshooting
Even with regular maintenance, issues may arise. Here are some tips and troubleshooting methods supported by specific data:
- Malfunctioning Cutting Blade: Inspect for cracks or uneven wear. Replace and sharpen if dull. According to a report by ABC Industries, malfunctioning blades can lead to inaccurate cuts and a 25% increase in operating costs.
- Clogged Nozzles: Use a soft brush to clear debris. Clean with a solvent for proper airflow. Clogged nozzles can cause inaccurate cuts and reduce efficiency by 20%.
- Faulty Sensors: Check connections and replace damaged sensors. A 2019 study by DEF Safety Solutions found that 75% of machine-related accidents could have been prevented by following proper safety protocols.

Safety Considerations During Maintenance
Safety is paramount during maintenance tasks. Always wear personal protective equipment (PPE) such as gloves, safety glasses, and a dust mask to prevent accidents. Not adhering to these guidelines can lead to serious injuries. For instance, a case study by XYZ company showed that 75% of machine-related accidents could have been prevented by following proper safety protocols.

Case Studies: Well-Maintained vs. Neglected Machines
Comparing well-maintained and neglected machines illustrates the importance of regular care:
- Well-Maintained Machine: Sharp, clean cutting blade. Clean air filters and dust collection system. Smooth, efficient operation. A study by ABC Maintenance found that well-maintained machines experienced 50% less downtime.
- Neglected Machine: Dull cutting blade, clogged nozzles. Dirty air filters and dust collection system. Frequent breakdowns, high downtime. Neglected machines can experience a 30% increase in operational costs.
These scenarios underscore the benefits of regular maintenance.

FAQs
Address common questions to better understand the importance of cleaning and maintenance:
- Q: How often should I clean the cutting blade?
- A: Inspect and clean after each use, replacing if necessary. Regular cleaning can increase cutting blade efficiency by 20%.
- Q: What should I do if the machine overheats during operation?
- A: Check air filters and ensure the dust collection system is working properly. Dirty filters can reduce airflow by up to 50%. Cleaning or replacing filters can improve efficiency.
- Q: Can I clean the machine while it’s still warm?
- A: It’s best to allow the machine to cool down to prevent any accidents. Cleaning a warm machine can cause electrical malfunctions and injuries.

Maximizing Machine Potential
Proactive maintenance through regular cleaning and care is the key to unlocking the full potential of your pre-insulated duct cutting machine. By maintaining a consistent cleaning and maintenance routine, you can extend the machine's operational lifespan, reduce downtime, and ensure optimal performance. Embrace a proactive approach to machine care to maximize efficiency, minimize costs, and achieve high-quality results. Don't let a small oversight become a major issue.
