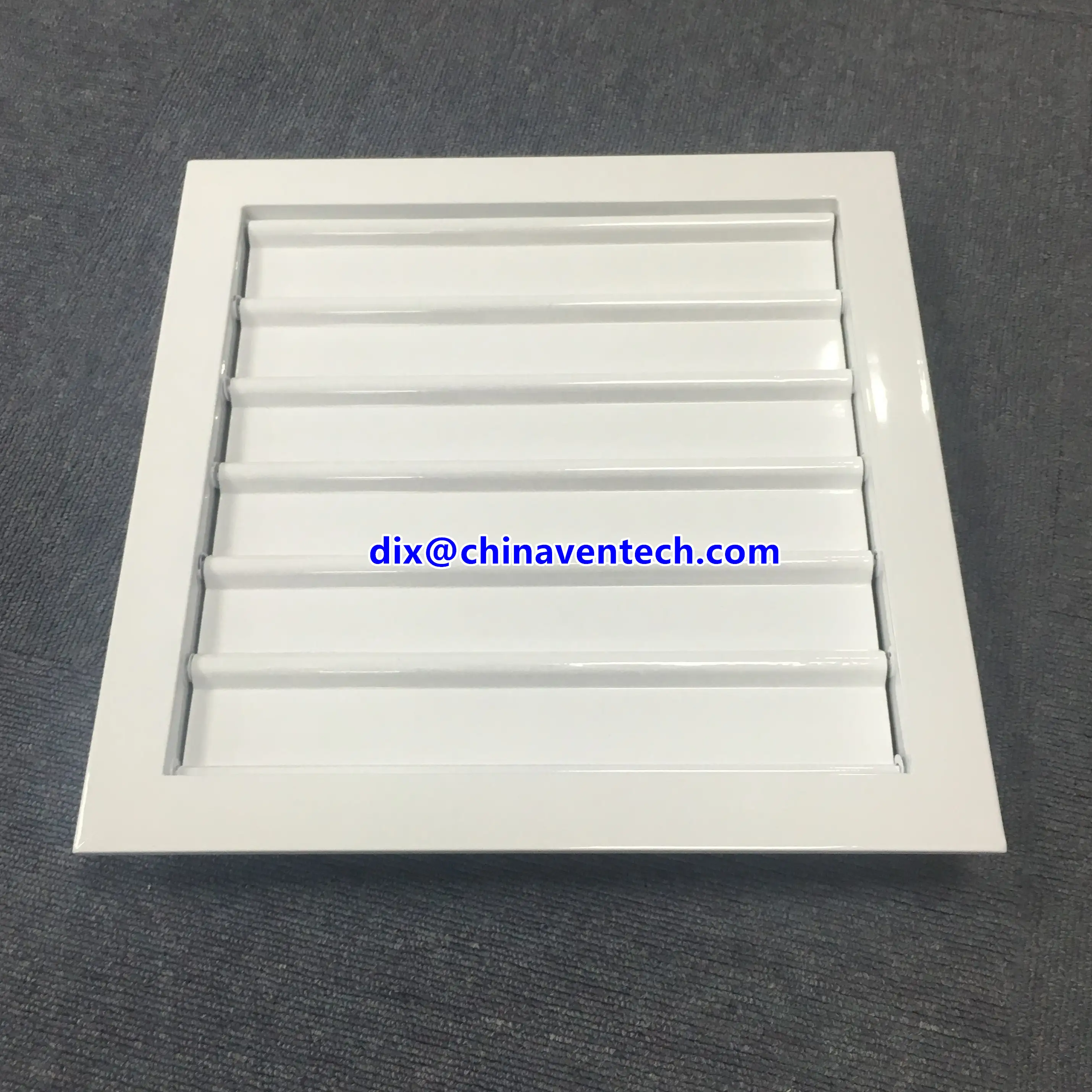

Hvac duct work gravity shutter ventilation transfer air grille gravity louver 1
Hvac duct work gravity shutter ventilation transfer air grille gravity louver 2
Hvac duct work gravity shutter ventilation transfer air grille gravity louver 3
Hvac duct work gravity shutter ventilation transfer air grille gravity louver 4
Hvac duct work gravity shutter ventilation transfer air grille gravity louver 5
Hvac duct work gravity shutter ventilation transfer air grille gravity louver 6
Hvac duct work gravity shutter ventilation transfer air grille gravity louver 1
Hvac duct work gravity shutter ventilation transfer air grille gravity louver 2
Hvac duct work gravity shutter ventilation transfer air grille gravity louver 3
Hvac duct work gravity shutter ventilation transfer air grille gravity louver 4
Hvac duct work gravity shutter ventilation transfer air grille gravity louver 5
Hvac duct work gravity shutter ventilation transfer air grille gravity louver 6

Hvac duct work gravity shutter ventilation transfer air grille gravity louver

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Warranty:1 Year
    After-sale Service:Return and Replacement
    Project Solution Capability:NONE
    Application:Hotel, Building
    Design Style:Modern
    Place of Origin:Guangdong, China
    Brand Name:VENTECH
    Model Number:GL-VA
    Product name:Gravity louver
    Function:Air Outlet
    Color:9016,9010,anodized
    Material:Aluminum
    Size:Any size as customized
    Feature:Easy Installtion
    Shape:Rectangle shape
    Finshed:Powder coated finished
    Material thickness:1.0mm

    Hvac Ventilation System Aluminum Stationary Louver Gravity Shutter

    Gravity Louver:

              It applies to air conditioning room with positive pressure. It exhausts air automatically. Usually the blade is vertical, it isolates the air circulation between indoor and outdoor. When the indoor pressure is bigger than the outdoor pressure, the air flow blows the blade and the inside air is exhausted. The air isn’t able to flow into room if the indoor pressure is smaller than outdoor pressure. It has single-track non-return function. Air volume damper that adjust air volume and air speed or filter that decrease dust and purify air can be set up in the back of air outlet according to customer’s requests.



    We use high quality extruded aluminum to produce the gravity louver which is usually used on the outside of walls. This aluminum louver design is intended for air extraction and automatic closet of duct, when the air equipment is switched off.



    GL-VA gravity louver has been anodized. It can be accurately adjusted for smooth performance. Optional colors are RAL9010 and RAL9016. Only when the exhaust fan is running that the blades of this type air louver can be opened. The blades will close automatically to preventing rains , dust, insects from getting inside rooms, one the exhaust fan is turned off.

    Hvac duct work gravity shutter ventilation transfer air grille gravity louver



    Features:

    • Made of high quality extruded aluminium profile.

    • It is used for air extraction and automatic close of duct when the air equipment is switched off.

    • RAL 9010 / RAL 9016/ Anodized



    Drawings& data:

    Selection Table:

    Standard Size H*L (mm) Effective Area (m2) Air Volume (m3/h)
    300*150 0.029 260
    500*150 0.050 450
    500*250 0.088 788
    750*250 0.131 1180
    750*350 0.183 1650
    900*300 0.203 1830
    900*500 0.338 3040
    1000*250 0.188 1690
    1000*350 0.263 2360
    10000*500 0.400 3600





    Sample pictures show:

    Hvac duct work gravity shutter ventilation transfer air grille gravity louver



    Hvac duct work gravity shutter ventilation transfer air grille gravity louver



    Hvac duct work gravity shutter ventilation transfer air grille gravity louver



    Weather louver WL-VA:



    Hvac duct work gravity shutter ventilation transfer air grille gravity louver

    Features:

    *Made of high quality extruded aluminum profiles.
    *Water proof blades design.
    *Wire mesh optional.

    *Filter optional.
    *Opposed blades damper optional.
    *Color RAL9010 or RAL9016, or Anodized.
    *Mounted in exterior wall and used for exhaust or air intake.



     Drawings&sizes data:









    Product sample picture:





    WL-VR:

    *Round weather louver optional :
    *Standard size :100,150,200,250,300mm

    Hvac duct work gravity shutter ventilation transfer air grille gravity louver

    Features:

    • Made of high quality aluminum.
    • Water proof baldes design
    • Wire mesh optional.
    • Color RAL 9010, RAL9016,Anodized

    Package:

    inner PVC filmed packed,outer strong cartons
    with damper 5pcs/ctn
    without damper 10pcs/ctn

    LCL in standard export pallets, FCL in 20GP,40GP, or 40HQ container.
