Ventech PIR duct cutting machine

Difference on Ventech PIR duct cutting machine with others?

Ventech VDCM-4013 is CNC machine special for Pre-insulated duct cutting and fabrication.

In Pre-insulated ducting project, we recommend this PID cutting machine to replace the labor manual cutting, which is low efficiency and low quality. PID duct machine can support you cut and fabricate PIR duct fast, nice, and make more profit!

VDCM-4013 can cut different kinds of insulated duct, includes PIR duct, Phenolic duct, PU duct, insulation duct, foam duct, fiberglass duct, covers these brands: Kingspan duct, P3 dutal, Easy duct, TD duct, Climaver duct, etc.

Now there are many similar models of machine for insulated duct cutting, let’s share with you what is the difference on Ventech PID machine with the others?

⭐Cutting Blade Function

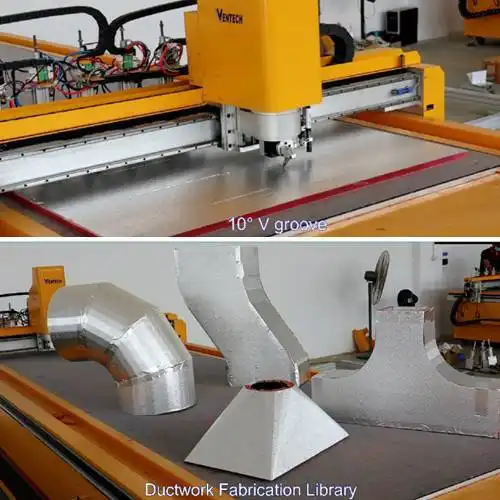

Ventech PID machine is equipped with CNC high-accuracy 5-Asix cutting blade, it can cut any angle on duct sheet. With this design, we can fabricate circle round duct, oval duct. NO Need bending machine anymore!

But the other PID duct machines normally use fixed angle blade which can ONLY can 90 and 45 degree, they can’t make little V-grooves on duct sheet.

⭐Material Fixing Way

VDCM Pre-insulated duct machine can fix the duct panel tightly by vacuum fan suction, we don’t design the rolling table, instead, we use Polymer-material as tablecloth to cover the machine table, which can suction the duct board and better protect your duct aluminum face.

⭐Software Function

Based on ductwork experience and technical, Ventech develop our own software named Vcut, we don’t use any other software which WITHOUT customized modification or with charges. Ventech PIR duct machine software can do:

1. 1.Includes more than 40 types of duct fittings library
2. 2.Automatic nesting, plotting
3. 3.Automatic typesetting, NO Need manual draw and setting
4. 4.Automatic calculation the best usage for your duct sheet
5. 5.Output a cost file for your easy-check on cost and profit
6. 6.Output a ductwork file for your easy-bring to machine work
8. ⭐Less Wastage for your Duct

Ventech Vcut software nesting usage can achieve 80% usage in average, sometimes can achieve more than 90% usage of duct sheet. This is the Key to make More Margin, because the machine can save your project cost by using less duct sheet!

⭐Ventech Service

1. 1.We won’t charge annually on software
2. 2.We can add new fitting shape into software library without charge before year 2025
3. 3.We can modify the duct graphics in software library for your special need in project
4. 4.We have 24-hrs online service support to give you fast feedback on machine use
5. 5.We can send engineer to do on-site maintain and training if necessary

Application
