    Ventech insulation duct cutting machine

    Ventech Group of companies is a manufacturer with 18-year history, integrated product development, designing, production, sales and service into a whole. We are always seeking and establishing long-term cooperative relationships with our customers. We use the best quality and service to retain our customers with us and make them our friends.

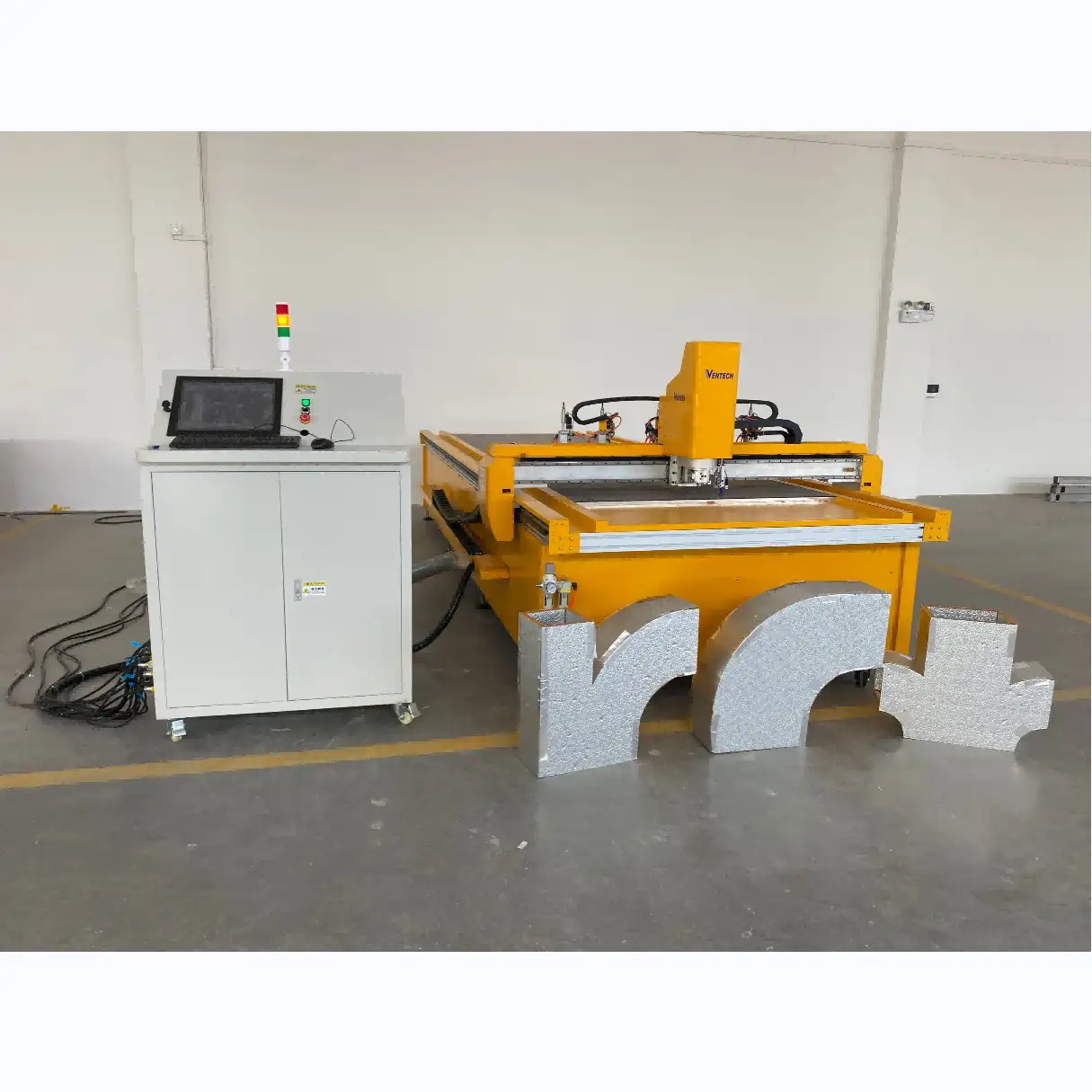

    Ventech insulation duct cutting machine is specially designed for pre-insulated duct cutting. It is developed, designed, produced by Ventech, equipped with Ventech’s intelligent software. The machine is a 5-axis machine, can achieve fast, accurate and 360 degree cutting. And the software can provide customers with multiple functions through simple clicks on the mouse.

    Available cutting material: PIR, Phenolic foam panel, PU foam panel, rigid fiberglass panel, Kingspan panel, P3 ductal, easy duct(Unigulf, UAE) panel, Alpha duct, MPU duct, kool duct, IP duct, Pal Π duct.

    Application: Pre-insulated duct, PIR duct, PU, Phenolic foam duct, rigid fiberglass duct for HVAC ventilation system.

    Software functions:

    1. ①Auto nesting (From 3D drawings expand to 2D drawings)
    2. ②Auto typesetting (MAX. utilization of the material)
    3. ③Rich duct shape gallery (choose duct shape from our gallery directly, no need to draw it yourself)
    4. ④Auto cutting routes and angle setting (no need to set each cutting line one by one)
    5. ⑤Generate file of “list of production” (help fast identify and assemble the duct parts )
    6. ⑥generate file of “list of item details” (help calculate the cost of your jobs and the number of the accessories you need)

    Hardware functions:

    1. ①1 rotary knife (to cut all angles) and 9 back knives (45 degree each, available for V groove cutting for long square duct)
    2. ②5 axis machine with 360 degree cutting head, available for every angle and duct shape.
    3. ③Fix material with vacuum adsorbtion to better protect your material.
    4. ④Efficiency improved 90%, increase productivity and quality of work.
    5. ⑤Only need 1 worker to operate the machine, help save labor cost.

    Ventech PI duct cutting machine compared with European brands:

    ⭐Excellent quality

    ⭐More in functions

    ⭐Less in price

    Ventech PI duct cutting machine compared with other Chinese brands:

    ⭐we have self-developed software and others don't.

    ⭐we have one "360 degree rotary cutting head" that can cover all kinds of ducts you want, others need to change knives frequently to cut different angles.

    ⭐Ventech intelligent software truly achieve easy program and accurate cutting.

    ⭐In the cutting process, there will be no dust, so as to protect the environment and the health of the operator.

    Ventech insulation duct cutting machine 4
    Ventech insulation duct cutting machine 5
    Model numberVDCM-4013
    Cutting Thickness0.2-30mm
    Cutting tolerance±0.2mm
    Supply voltageAC 220V 380V ±10%,50HZ
    Cutting area4000mm*1300mm
    Overall dimension4610*2050*1360mm

    Application

    Ventech insulation duct cutting machine 6
    Ventech insulation duct cutting machine 7
