Phenolic Board Ductwork

There are a lot of methods to purchase duct board cutting machine, including online purchase, offline order, and so on. As we keep promoting the product online, we set some company links in the marketing content, and customers can click the link to access to our official website. Also, you can contact our sales directly via email or phone, they will be glad to help you. As for the offline purchase, customers can visit our factory. Once you are satisfied, you can sign the contract on-site, with all duty and responsibility clarified.

YINGDE VENTECH INTELLIGENT EQUIPMENT CO., LTD., relying on core manufacturing strength, steps far ahead of other competitors in the development and production of fabric cutting machine. The PPPP series is widely praised by customers. A range of reliable tests for VENTECH duct machine will be carried out by the QC team. It has passed the anti-aging test, high-temperature resisting test, and shock-proof tests. The working speed of this product can be easily set in line with requirements. The product has good competition capacity and a good development prospect. This product stands out for its outstanding lubricating effect.

Quality strategies remain our operational principle. We will invest more in sourcing higher quality raw materials and seek more delicate workmanship in our efforts to improve product quality.

Duct fabrication machine
In recent years, the application of pre-insulated duct in a HVAC system has become more and more popular. The traditional Duct fabrication machine and processing methods of pre-insulated duct boards can not meet the needs of modern production day by day. The application of cnc pre insulated duct cutting machine has brought unprecedented leap to the processing methods of ductworks.


A good cnc pre insulated duct cutting machine brings you lots of benefits as following:
1. Precision cutting. After cutting, both sides of the pipe are flat and easy to connect.
2. An automatic cnc pre insulated duct cutting machine is simple, fast and saves a lot of working time.
3. There will be no dust when cutting.
4. Full-featured, and it can cut all kinds of shapes on one board.


How to choose the right cnc pre insulated duct cutting machine?
When you search online, there many options of cnc pre insulated duct cutting machine. They’re equipped with different software, cutting sizes, and cutting heads ect. A good cnc pre insulated duct cutting machinecan save you lots of time and money. Here are some tips on how to choose the right duct board cutting machine.
1. Cutting heads

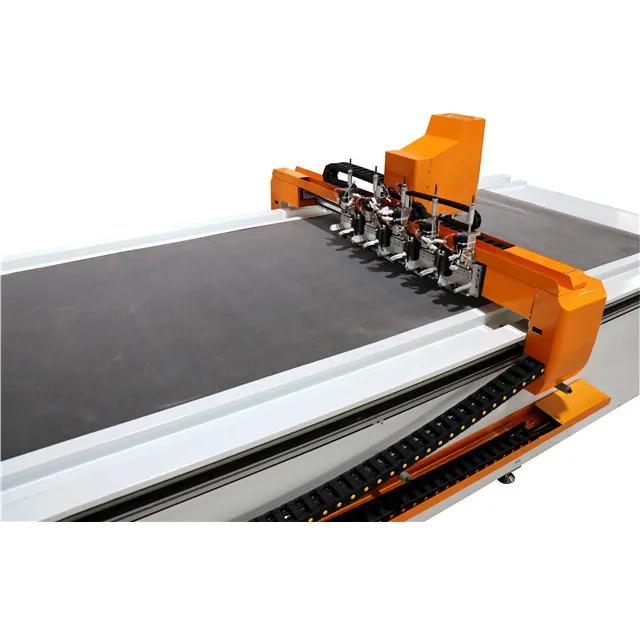

When choosing a pre-insulated duct cutting machine, one thing to consider is the cutting heads. Some machines only have one cutting heads, while others have 3-6 cutting heads. The more cutting heads it has the more efficient it will cut the duct boards. For example, this Ventech cnc pre insulated duct cutting machinecomes with 1 rotary, 5 straight, totally 6 cutting heads. 5 times faster than other brands who only have one cutting head.
Ventech duct board cutting machine Duct board cutting machine from other manufacturer




2. Software system
The second thing to be considered is whether the duct board cutting machine has a professional, easy to use software system. A good software system has all the shapes you want, easy to use, and keep good control of accuracy. For example, this Ventech cnc pre insulated duct cutting machine is equipped with a self-developed system, which provides high utilization rate with its automatic calculating and layout system. It is fast and easy with its automatic image reading and cutting.


3. Cutting Size
For some contractors who handle big projects like hospitals, hotels, shopping centers, ect, a bigger cnc pre insulated duct cutting machine should be taken into consideration. A machine used to cut 4m*1.3m duct boards is the best.

Features and Applications of Phenolic Composite Air Duct（Pre-insulated Duct）





Phenolic foam plastic is a new type of flame retardant, fireproof and low smoke insulation material. It is a closed-cell rigid foam made of phenolic resin with flame retardant, smoke suppressant, foaming agent, curing agent and other additives.

Its most prominent features are flame retardant, low smoke, and high temperature deformation resistance. It can be cast-in-place foamed, molded, and machined. It can be made into plates, shells and various special-shaped products. It overcomes the shortcomings of the original foam plastic insulation material, such as flammability, smoke, and heat deformation, and retains the characteristics of the original foam plastic insulation material, such as light weight and convenient construction.

Phenolic foam has abundant sources of raw materials, low price, simple production and processing, and wide range of products. It is suitable for large-scale cold storage, storage tanks, ships and various insulation pipes and construction industries. If it is used in factories, mines and mechanical equipment with strict fire protection requirements, it can highlight its characteristics of flame retardant, low smoke, and high temperature disparity resistance. Such as: heat preservation of ships, warships, trains, armored vehicles, papermaking, chemical industry, pharmaceuticals, etc.

Performance characteristics of phenolic foam board:
1. It has a uniform closed-cell structure, low thermal conductivity, and good thermal insulation performance, which is equivalent to polyurethane and better than polystyrene foam.
2. Under the direct action of the flame, it has carbon formation, no dripping, no curling, and no melting. After the flame burns, a layer of "graphite foam" is formed on the surface, which effectively protects the foam structure in the layer. Anti-flame penetration time up to 1 hour;
3. The applicable temperature range is wide, it can be used at -200°C~200°C in a short period of time, and it can be used at 140°C~160°C for a long time. It is superior to polystyrene foam (80°C) and polyurethane foam (110°C).
4. Phenolic molecules contain only carbon, hydrogen, and oxygen atoms. When subjected to pyrolysis, except for a small amount of CO gas, no other toxic gases will be produced, and the maximum smoke density is 5.0%. After the 25mm thick phenolic foam board is subjected to flame spraying at 1500°C for 10 minutes, only the surface is slightly carbonized but it cannot be burned through, and it will neither catch fire nor emit thick smoke and poisonous gas.
5. In addition to being corroded by strong alkali, phenolic foam can almost resist the erosion of all inorganic acids, organic acids and organic solvents. Long-term exposure to sunlight, no obvious aging phenomenon, so it has good aging resistance.
6. It has a good closed-cell structure, low water absorption and strong steam penetration resistance. Condensation does not occur when used for thermal insulation purposes (cold insulation).
7. Dimensional stability, small change rate. The dimensional change rate is less than 4% within the temperature range of use.
8. The cost of phenolic foam is low, only equivalent to two-thirds of polyurethane foam.

Application form of phenolic foam insulation material:
1. Produce phenolic foam boards/panels, and then use CNC cutting machine(Ventech pre-insulated duct cutting machine is your good choice) to cut into various duct graphics, which are used in various occasions for ducting work.
2. It can be directly produced into veneer thin board or large-scale board, which can be used for building interior decoration board or firewall, fireproof board and fireproof partition wall, etc.
3. On-site pouring of foam, which can pour insulation layers such as large storage tanks, reactors and pipelines outdoors below 15°C.
4. Spray foam on site, and use a spray gun to spray the surface of mines, tunnels and underground buildings as thermal insulation layer.
5. It can be used as the material for thermal insulation inside and outside the exterior wall and the core of the color steel sandwich panel

Welcome to contact VENTECH, China. We can provide phenolic foam boards production line and CNC cutting machine for phenolic duct cutting.






More Recommendations:

Duct Fabrication Machines
Duct Board Cutting Machine
Insulation Cutting Machine
Pre Insulated Ductwork
Phenolic Ductwork
Duct Fabrication Procedure
Duct Board Fabrication
How to Fabricate Ductwork
Types of Duct
HVAC Industry Trends
HVAC Ductwork Fabrication

In recent years, the construction and manufacturing industries have seen a significant shift toward adopting advanced technologies to improve efficiency and reduce waste. One of the most notable advancements is the use of CNC (Computer Numerical Control) cutting machines for insulation boards. These machines have become indispensable tools in modern manufacturing, offering unparalleled precision, consistency, and innovation. In this guide, we will explore the key aspects of insulation board CNC cutting machines, their advantages, the latest innovations, and their applications, while also discussing the benefits of using these machines in terms of energy savings and cost-effectiveness. Lets dive into the details.

Technical Specifications of Insulation Board CNC Cutting MachinesInsulation board CNC cutting machines are designed with precision in mind, offering a range of features that cater to the specific needs of insulation board manufacturing. One of the standout features of these machines is their use of high-quality blades, such as steel, diamond, or cubic boron nitride blades, which ensure accurate and smooth cuts. The machines are capable of handling various material thicknesses, making them versatile for different insulation board sizes and types. Additionally, these machines are equipped with advanced software that allows for real-time monitoring and adjustments, ensuring that each cut is made precisely as per the design specifications.
Another critical aspect of insulation board CNC cutting machines is their interface capabilities. These machines are often connected to CAD (Computer-Aided Design) software, enabling manufacturers to input detailed cutting instructions. The integration of these software tools ensures that the machines can produce complex shapes and patterns with ease. Furthermore, the machines are designed to be user-friendly, with intuitive controls that allow operators to navigate the software with ease. The combination of precise blade material, advanced software, and user-friendly controls makes these machines a reliable and efficient tool for cutting insulation boards.

Advantages of Using CNC Cutting Machines for Insulation BoardsOne of the most significant advantages of using CNC cutting machines for insulation boards is the level of precision they offer. Traditional manual cutting methods are prone to human error, leading to inconsistencies in the final product. CNC machines, on the other hand, are programmed to make cuts with extreme accuracy, ensuring that each piece of insulation board meets the required specifications. This precision not only enhances the quality of the final product but also reduces waste, as minor errors are minimized.
Another benefit of CNC cutting machines is their ability to improve efficiency in the production process. By reducing the time required to cut each piece of insulation board, these machines allow manufacturers to produce more units in a shorter amount of time. This not only reduces labor costs but also increases the overall productivity of the manufacturing facility. Additionally, CNC machines are capable of cutting multiple pieces simultaneously, further enhancing their efficiency.
Moreover, CNC cutting machines are ideal for handling large-scale projects. Insulation board manufacturing often involves producing large quantities of insulation boards, which can be challenging with traditional methods. CNC machines, however, are designed to handle large materials without compromising on precision. This makes them an essential tool for manufacturers dealing with large-scale projects, such as residential construction or industrial installations.

Latest Innovations in Insulation Board Cutting TechnologyRecent advancements in CNC technology have introduced several innovations that are revolutionizing insulation board cutting. One of the most notable innovations is the ability to perform multi-axis cutting. Unlike traditional CNC machines, which are limited to single-axis movement, multi-axis CNC machines can move in three dimensions, allowing for more complex shapes and designs. This is particularly useful in applications where the insulation boards need to be cut into intricate shapes, such as for irregularly shaped roofs or flooring.
Another significant innovation in insulation board cutting technology is the introduction of automated tool changes. These machines are equipped with interchangeable tooling systems that allow operators to quickly and easily switch between different blade sizes and types. This not only enhances the versatility of the machine but also reduces the time required for setup and maintenance. Automated tool changes are especially beneficial in high-volume production environments, where consistency and efficiency are critical.
Furthermore, the latest advancements in CNC technology include real-time monitoring systems. These systems allow operators to track the cutting process in real-time, ensuring that each cut is made precisely as required. This level of control is particularly important in applications where the final product must meet strict insulation and acoustic standards. Real-time monitoring systems also enable manufacturers to identify and correct any deviations from the design specifications without pausing the production process.

Applications of CNC Cutting Machines for Insulation BoardsInsulation board CNC cutting machines have a wide range of applications across various industries. One of the primary applications is in the residential construction sector, where they are used to cut insulation boards for roofs, walls, and floors. The precision offered by these machines ensures that the insulation boards are cut to the exact specifications required for optimal thermal performance.
In addition to residential construction, CNC cutting machines are also used in large-scale industrial projects. For example, they are used in the production of roofing insulation, flooring insulation, and wall insulation for commercial buildings. These machines are particularly useful in industries where insulation is a critical component of the overall building design, such as in the construction of energy-efficient homes or large industrial facilities.
Furthermore, CNC cutting machines are increasingly being used in the furniture industry, where they are used to cut insulation boards for insulation doors and windows. The ability to produce precise cuts is essential in these applications, as it ensures that the doors and windows are thermally efficient and meet safety standards.

Energy Savings from CNC Cutting MachinesOne of the most significant benefits of using CNC cutting machines for insulation boards is their contribution to energy savings. The precision offered by these machines ensures that insulation boards are cut to the exact specifications required, leading to better installation and improved thermal performance. When insulation boards are cut precisely, they provide better insulation, reducing the need for additional heating and cooling systems. This not only improves the energy efficiency of a building but also contributes to a reduction in overall energy consumption.
Moreover, the reduction in waste produced by CNC cutting machines also contributes to energy savings. Traditional cutting methods often result in a significant amount of scrap material, which must be disposed of, leading to energy waste. CNC machines, on the other hand, are designed to minimize scrap, ensuring that the maximum amount of material is used efficiently. This not only reduces waste but also conserves valuable resources, contributing to a more sustainable manufacturing process.
Case studies have shown that the use of CNC cutting machines can lead to significant energy savings. For example, a construction project that switched to CNC cutting machines saw a reduction in energy consumption by up to 20%, resulting in substantial cost savings and a more environmentally friendly operation.

Safety Guidelines for Using CNC Cutting Machines for Insulation BoardsThe use of CNC cutting machines in insulation board production requires careful attention to safety guidelines to ensure that operators and maintenance staff are protected from potential hazards. One of the most critical aspects of using these machines is proper handling of materials. Insulation boards can be sharp or contain sharp edges, so operators must handle them with care to avoid injuries.
In addition to material safety, operators must follow proper safety procedures when operating CNC cutting machines. This includes wearing protective gear, such as safety glasses and gloves, to protect against debris and sharp objects. Regular maintenance of the machine is also essential to ensure that it is in good working condition and that there are no hidden hazards.
Operators should also be familiar with the machines controls and safety interlocks. These features are designed to prevent accidents by alerting operators to potential hazards before they occur. Additionally, operators should be trained in the use of the machine and the importance of following safety guidelines. Regular safety training can help to ensure that operators are prepared to handle any potential risks.
Finally, maintenance staff must be trained in the proper care and inspection of CNC cutting machines. Regular inspections of the machines controls, blades, and other components are essential to prevent malfunctions and ensure the machine is operating safely. By following these safety guidelines, operators and maintenance staff can protect themselves and ensure that the machine is used efficiently and safely.

Cost-Effectiveness of CNC Cutting Machines for Insulation Board in Building MaintenanceOne of the most significant advantages of using CNC cutting machines for insulation boards is their cost-effectiveness. CNC machines are initially more expensive to purchase, but their long-term financial benefits make them a worthwhile investment. The precision offered by these machines reduces waste, leading to significant cost savings in material usage. Additionally, CNC machines are capable of cutting multiple pieces simultaneously, reducing the time required for each cut and further enhancing efficiency.
The reduction in labor costs is another benefit of using CNC cutting machines. Traditional cutting methods often require multiple operators to work simultaneously, which can increase labor costs. CNC machines, on the other hand, can perform multiple cuts at once, reducing the need for additional labor. This not only saves money but also improves job security for manufacturers.
Furthermore, CNC cutting machines are ideal for maintaining large-scale insulation projects. The ability to produce precise cuts quickly allows manufacturers to keep up with demand, ensuring that they have the materials needed to meet customer requirements. This level of efficiency is particularly important in industries where large-scale projects are common, such as construction and manufacturing.
In conclusion, CNC cutting machines offer a range of benefits for insulation board manufacturers, including improved precision, consistency, energy savings, and cost-effectiveness. By adopting these machines, manufacturers can enhance their production processes, reduce waste, and improve overall efficiency. Whether youre managing a residential construction project or a large-scale industrial installation, CNC cutting machines are an essential tool for achieving the highest standards of quality and performance.
