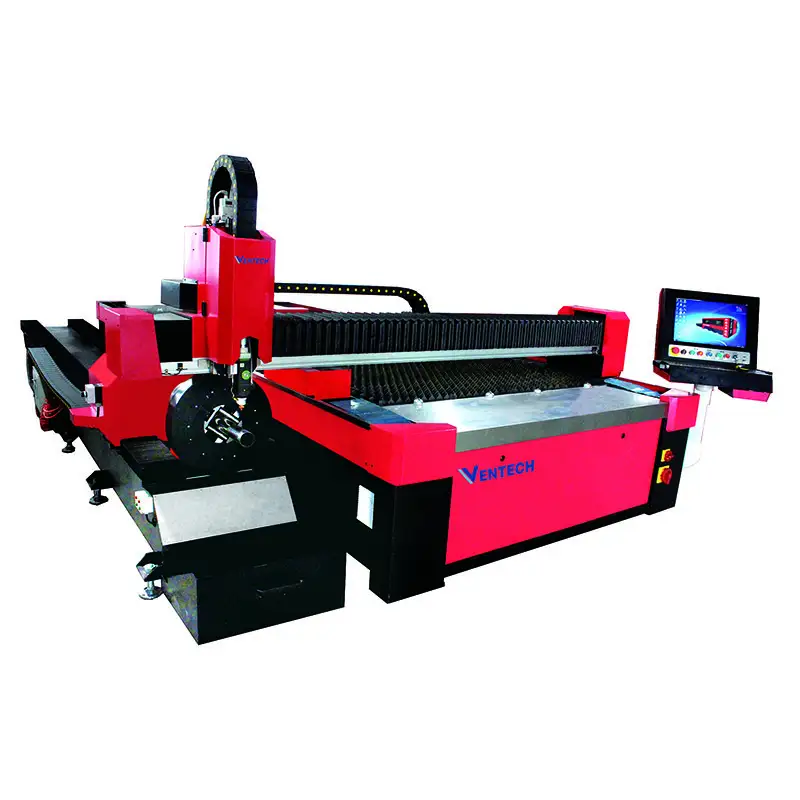

1.5kw laser cutting machine

Ventech laser cutting machine is used in the cutting of GI tube, which has the advantages of fast, accurate, complete patten library and so on.

The laser cutting machine is equipped with the advanced international laser to output high-energy density laser beam and focus on the surface of the product. The area on the workpiece illuminated by the ultra-fine focus spot is instantly melted and vaporized, and the spot is moved by a CNC mechanical system Realize automatic cutting by irradiating position. It is a high-tech equipment integrating the most advanced fiber laser technology, numerical control technology, and precision mechanical technology.



Performance of 1.5kw Laser Cutting Machine

1. Adopt bilateral servo motor and guiding rotation mechanism, high cutting precision, higher stability, higher speed and faster acceleration. The maximum speed of the empty line is 80 m/min.

2. Fully digital CNC servo motor communication. Using professional monitor software, you can design various graphics development or text instant processing, flexible processing, simple and convenient operation.

3. Equipped with a new dedicated laser system, 1500W laser, used in high-speed cutting, with high speed and stability.

laser cutting machine

Application of 1.5kw Laser Cutting Machine

Suitable for metal materials such as stainless steel, carbon steel, alloy steel, silicon steel, galvanized steel plate, nickel-titanium alloy, inconel, titanium alloy, etc.

It is widely used in various manufacturing industries such as aerospace, automobile and ship, machinery manufacturing, elevator manufacturing, advertising production, household appliance manufacturing, medical equipment, hardware, decoration, and metal processing services.



Advantages of 1.5kw Laser Cutting Machine

1) Excellent beam quality: smaller focused spot, finer cutting lines, higher work efficiency and better processing quality;

2) Extremely high cutting speed: 2 times of the same power CO2 laser cutting machine;

3) Extremely high stability: The fiber laser is  with stable performance, and the service life of key components can reach 100,000 hours;

4) Very high electro-optical conversion efficiency: The optical conversion efficiency of fiber laser cutting machine is twice higher than that of CO2 laser cutting machine, which is energy-saving and environmentally friendly;

5) Very low use cost: The power consumption of the whole machine is only 20-30% of that of similar CO2 laser cutting machines;

6) Very low maintenance cost: no laser working gas; optical fiber transmission, no need for reflective lenses; can save a lot of maintenance costs;

7) Convenient product operation and maintenance: optical fiber transmission, no need to adjust the optical path;

8) Super flexible light guide effect: small size, compact structure, easy to flexible processing requirements.



Package for 1.5kw Laser Cutting Machine

1. Plywood bottom strong waterproof.
2. Spare parts for laser source and laser bed.
3. The edges are protected by foam and fixed with protective film.
4. All covered with strong protective film.
5. Vacuum packing.
6. Internal steel frame protection device.
7. Plywood packing and steel straps to fix the box outside.
8. Finish packing with common container or frame container.

这里可以自定义设置

Specification

Item

Data

Cutting size

3000*1500 mm

X axis route

1500 mm

Y axis route

3000 mm

Z axis route

120 mm

Positioning accuracy

±0.03 mm/m

Repeatability

±0.03 mm/m

Feed rate

80 m/min

Z axis height control

CNC, follow-up

Z axis servo system

Capacitive height sensor

Laser power

1500 W
