Expert for pre insulated duct CNC cutting machine.

这里可以自定义设置
1.0KW Laser cutting machine
B站不支持收货地址
B站不支持库存规格
MOQ:
1 set
Payment:
50% T/T down payment,50% T/T balance before shipment
Place of Origin
China
Brand:
VENTECN
Delivery time:
45-60 days
Start Port:
Shenzhen
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容

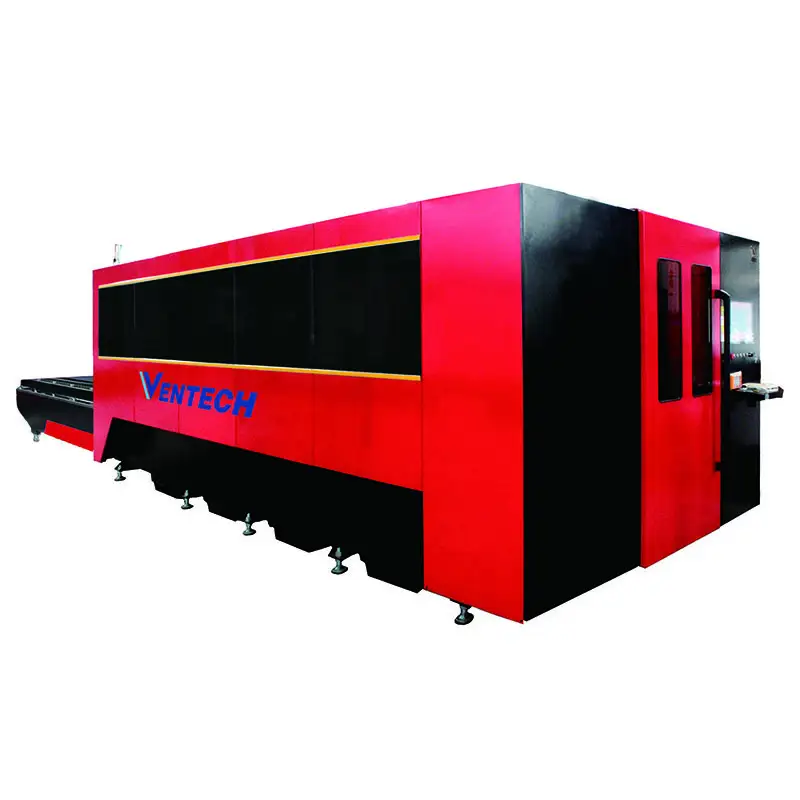

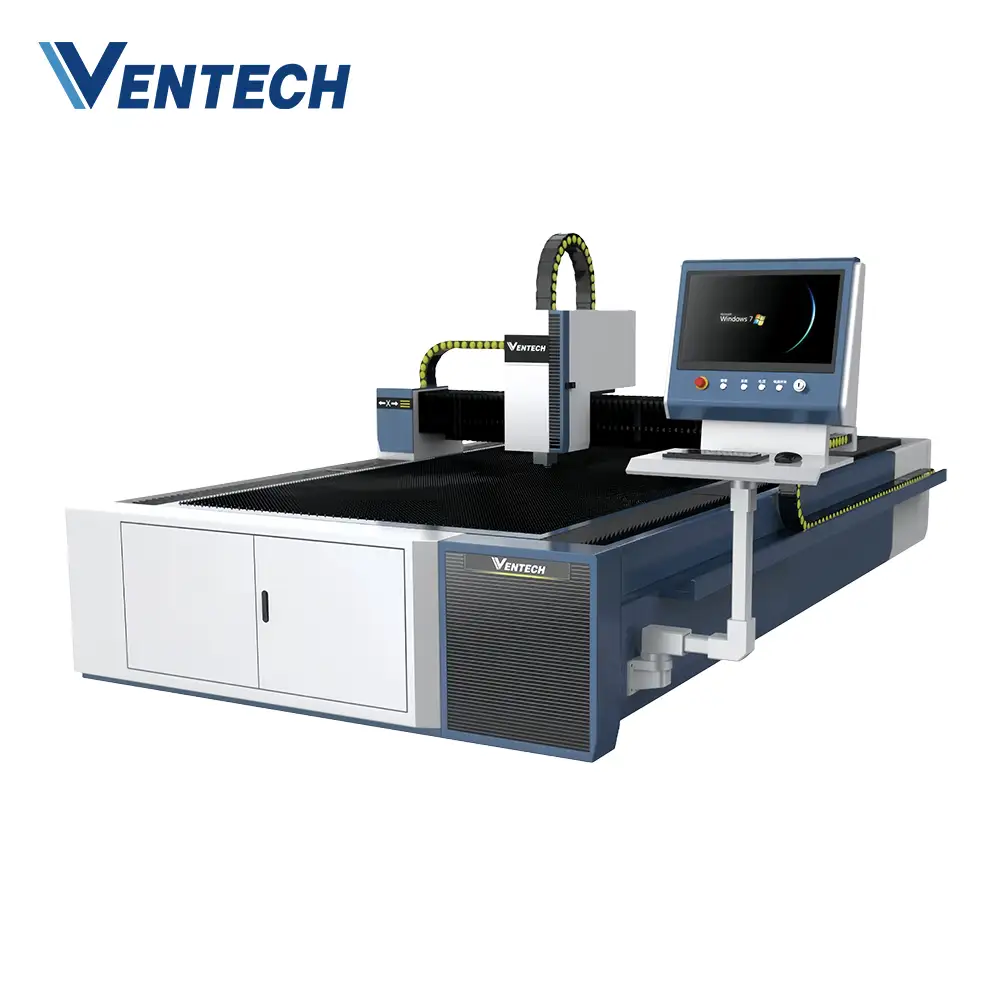

1.0kw laser cutting machine

Ventech laser cutting machine is used in the cutting of GI tube, which has the advantages of fast, accurate, complete patten library and so on.

The laser cutting machine is equipped with the advanced international laser to output high-energy density laser beam and focus on the surface of the product. The area on the workpiece illuminated by the ultra-fine focus spot is instantly melted and vaporized, and the spot is moved by a CNC mechanical system Realize automatic cutting by irradiating position. It is a high-tech equipment integrating the most advanced fiber laser technology, numerical control technology, and precision mechanical technology.



Performance :

1. Adopt bilateral servo motor and guiding rotation mechanism, high cutting precision, higher stability, higher speed and faster acceleration. The maximum speed of the empty line is 80 m/min.

2. Fully digital CNC servo motor communication. Using professional monitor software, you can design various graphics development or text instant processing, flexible processing, simple and convenient operation.

3. Equipped with a new dedicated laser system, 1500W laser, used in high-speed cutting, with high speed and stability.

Application

Suitable for metal materials such as stainless steel, carbon steel, alloy steel, silicon steel, galvanized steel plate, nickel-titanium alloy, inconel, titanium alloy, etc.

It is widely used in various manufacturing industries such as aerospace, automobile and ship, machinery manufacturing, elevator manufacturing, advertising production, household appliance manufacturing, medical equipment, hardware, decoration, and metal processing services.

Advantages

1) Excellent beam quality: smaller focused spot, finer cutting lines, higher work efficiency and better processing quality;

2) Extremely high cutting speed: 2 times of the same power CO2 laser cutting machine;

3) Extremely high stability: The fiber laser is  with stable performance, and the service life of key components can reach 100,000 hours;

4) Very high electro-optical conversion efficiency: The optical conversion efficiency of fiber laser cutting machine is twice higher than that of CO2 laser cutting machine, which is energy-saving and environmentally friendly;

5) Very low use cost: The power consumption of the whole machine is only 20-30% of that of similar CO2 laser cutting machines;

6) Very low maintenance cost: no laser working gas; optical fiber transmission, no need for reflective lenses; can save a lot of maintenance costs;

7) Convenient product operation and maintenance: optical fiber transmission, no need to adjust the optical path;

8) Super flexible light guide effect: small size, compact structure, easy to flexible processing requirements.

这里可以自定义设置

Specification

Item

Data

Cutting size

3000*1000 mm

X axis route

1000 mm

Y axis route

3000 mm

Z axis route

120 mm

Positioning accuracy

±0.03 mm/m

Repeatability

±0.03 mm/m

Feed rate

80 m/min

Z axis height control

CNC, follow-up

Z axis servo system

Capacitive height sensor

Laser power

1000 W

Application
