Heat wrapping and shrinking machine for air outlets VBF-75

Automatic assembly machine line for sale

Automatic stacking line automatic machine

HVAC insulation cutting machine with automatic feeding table

Product Information
Feedback

Company Advantages
1. This VENTECH is designed by experienced engineers with in-depth industrial knowledge. This product has been praised by its prominent energy-saving effect
2. The product, with an increasing reputation in the market, has a great developmental prospect. This product is characterized by its impact resistance
3. This product meets the requirements of safe use. Safety testing has been performed based on mechanical design/performance, the intent of the product, the conditions of use and more. This product is able to run at a fast and stable manner
4. This product has a precise dimension. Its manufacturing process adopts the CNC machines and advanced technologies, which guarantee its accuracy in size and shape. The dust will be not easy to accumulate on this product

Overview

Quick Details

Showroom Location:None

Video outgoing-inspection:Provided

Machinery Test Report:Provided

Marketing Type:New Product 2020

Warranty of core components:1 Year

Core Components:PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Brand Name:VENTECH

Condition:NEW

Applicable Industries:Manufacturing Plant, Construction works

Weight:1500 kg

Place of Origin:Guangdong, China

Warranty:1 Year

Key Selling Points:Easy to Operate

Material:Composite material

Usage:for Air Conditioning

Cutting Shapes:Elbow, Shoe, straight cut etc.

Fuction:Cutting phenolic duct parts

Certificate:ISO14001

Material thickness:≤30mm

Cutting Tolerance:0.2mm

Supply Voltag:AC220V, 380V 50Hz

After Warranty Service:Video technical support

Product Information

Working size	2500x1600mm
Material fixing way	Vacuum suction system
Cutting speed	80-2,500mm/s(according to different material)
Cutting thickness	≤50mm
Cutting accuracy	≤0.1mm
Drive system	servo driver
Transmission system	linear square rail & belt
Instruction system	HP-GL compatible format
Vacuum pump power	10.7KW
Graphic format supported	PLT, DXF, AI, HPJ, etc.
Compatible	CORELDRAW, PHOTOSHOP, AUTOCAD, etc.
Safety device	Infrared sensors & emergency stop devices
Working voltage	380V±10%, 50Hz/60Hz
Package	Wooden case
Machine size	3415×2480×1250mm

Product Description

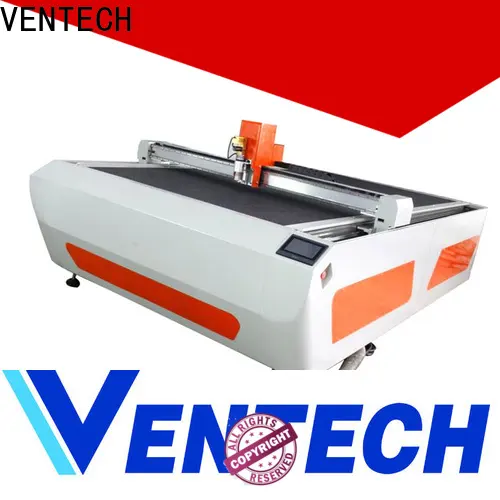

VENTECH insulation cutting machine is suitable for fiberglass and external thermal insulation cutting for HVAC ductwork. With our simple and smooth operating system, the complex graphics and product can be easily, precisely, and rapidly cut and produced, for material HVAC duct insulation with aluminum foil or with foil, or temperature insulation, this fiberglass cutter or duct insulation cutting machine permits to obtain finished pieces for ducts in pre-insulated; no more hand operations to do, the pieces obtained are ready to be glued. The standard machine is completed with a large quantity of accessories and devices dedicated to reduce the production time and generate the best quality of finished product.

Product Pictures

YINGDE VENTECH INTELLIGENT EQUIPMENT CO., LTD. receives a double reputation from customers and the market and enjoyed a high popularity. This product is less likely to generate vibration during operation. YINGDE VENTECH INTELLIGENT EQUIPMENT CO., LTD. cooperates with many well-known domestic and foreign brands for OEM cooperation. This product is less likely to generate vibration during operation.

Company Features
1. With advanced production equipment, YINGDE VENTECH INTELLIGENT EQUIPMENT CO., LTD. provides customers with a large number of each year.
2. YINGDE VENTECH INTELLIGENT EQUIPMENT CO., LTD. keeps concentrated on superior service for customers. Inquire!

q******d

YINGDE VENTECH INTELLIGENT EQUIPMENT CO., LTD. Introduce and learn from foreign advanced production methods, improve it in combination with its own conditions, develop a production method that is both in line with the company's conditions and efficient, and apply it to the production of , so that not only has high output, Moreover, it is durable, has a long service life, and has a certain quality guarantee.

e******q

The company has been engaged in the production and sales of for many years, and has accumulated rich experience in production and management. The products produced are thick in materials, fine in workmanship, high in quality, beautiful and practical.

m******x

In the whole production process, there are personnel to inspect, not only that, YINGDE VENTECH INTELLIGENT EQUIPMENT CO., LTD. also has a testing department, which conducts re-inspection of various performance indicators before leaves the factory to ensure that meets the needs and expectations of customers.

d******i

YINGDE VENTECH INTELLIGENT EQUIPMENT CO., LTD. There are large-scale workshops, standardized production workshops, modern production lines, and skilled technology and craftsmanship. The produced is not only good in quality and excellent in quality, but also meets relevant international quality standards. The pass rate of products is high, and customers can rest assured Partner with us for purchasing.

q******n

YINGDE VENTECH INTELLIGENT EQUIPMENT CO., LTD. has a quality inspection team composed of professionals who specialize in testing the quality and quality of to ensure that is of high quality and excellent quality.

m******b

Owing to our strict quality management system, this product is of high quality.
