Expert for pre insulated duct CNC cutting machine.

VENTECH  >  AI - Page Sitemap  >  VENTECH
VENTECH

VENTECH

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Company Advantages
1. VENTECH is carefully crafted. Factors such as the dimensions of the assembly and the machine elements, materials, and method of production are clearly specified before its manufacture. Its advanced serve system allows it to avoid unnecessary production waste
2. The product is competitively priced and widely used by people from all walks of life. Its modular design makes the replacement for parts easier
3. This product has the required strength. As it is made up of various machine elements on which various forces are applied, the forces acting on each of the element are meticulously calculated to optimize its design. The product has the ability to generate repeated accuracy
4. This product has great strength. It has the ability to withstand mechanical shocks from suddenly applied forces or an abrupt change in motion produced by handling, transportation or field operation. This product has been greatly upgraded to reduce the chance of production downtime
5. This product has the required strength. Its elements are designed considering the forces acting on it, so it will not distort or break when loads are applied. Thanks to its high automation, this product greatly helps save labor costs
Overview
Quick Details
Showroom Location:None
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Marketing Type:New Product 2020
Warranty of core components:1 Year
Core Components:PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Brand Name:VENTECH
Condition:NEW
Applicable Industries:Manufacturing Plant, Construction works
Weight:1500 kg
Place of Origin:Guangdong, China
Warranty:1 Year
Key Selling Points:Easy to Operate
Material:Composite material
Usage:for Air Conditioning
Cutting Shapes:Elbow, Shoe, straight cut etc.
Fuction:Cutting phenolic duct parts
Certificate:ISO14001
Material thickness:≤30mm
Cutting Tolerance:0.2mm
Supply Voltag:AC220V, 380V 50Hz
After Warranty Service:Video technical support
Product Information
Working size
2500x1600mm
Material fixing way
Vacuum suction system
Cutting speed
80-2,500mm/s(according to different material)
Cutting thickness
≤50mm
Cutting accuracy
≤0.1mm
Drive system
servo driver
Transmission system
linear square rail & belt
Instruction system
HP-GL compatible format
Vacuum pump power
10.7KW
Graphic format supported
PLT, DXF, AI, HPJ, etc.
Compatible
CORELDRAW, PHOTOSHOP, AUTOCAD, etc.
Safety device
Infrared sensors & emergency stop devices
Working voltage
380V±10%, 50Hz/60Hz
Package
Wooden case
Machine size
3415×2480×1250mm
Product Description

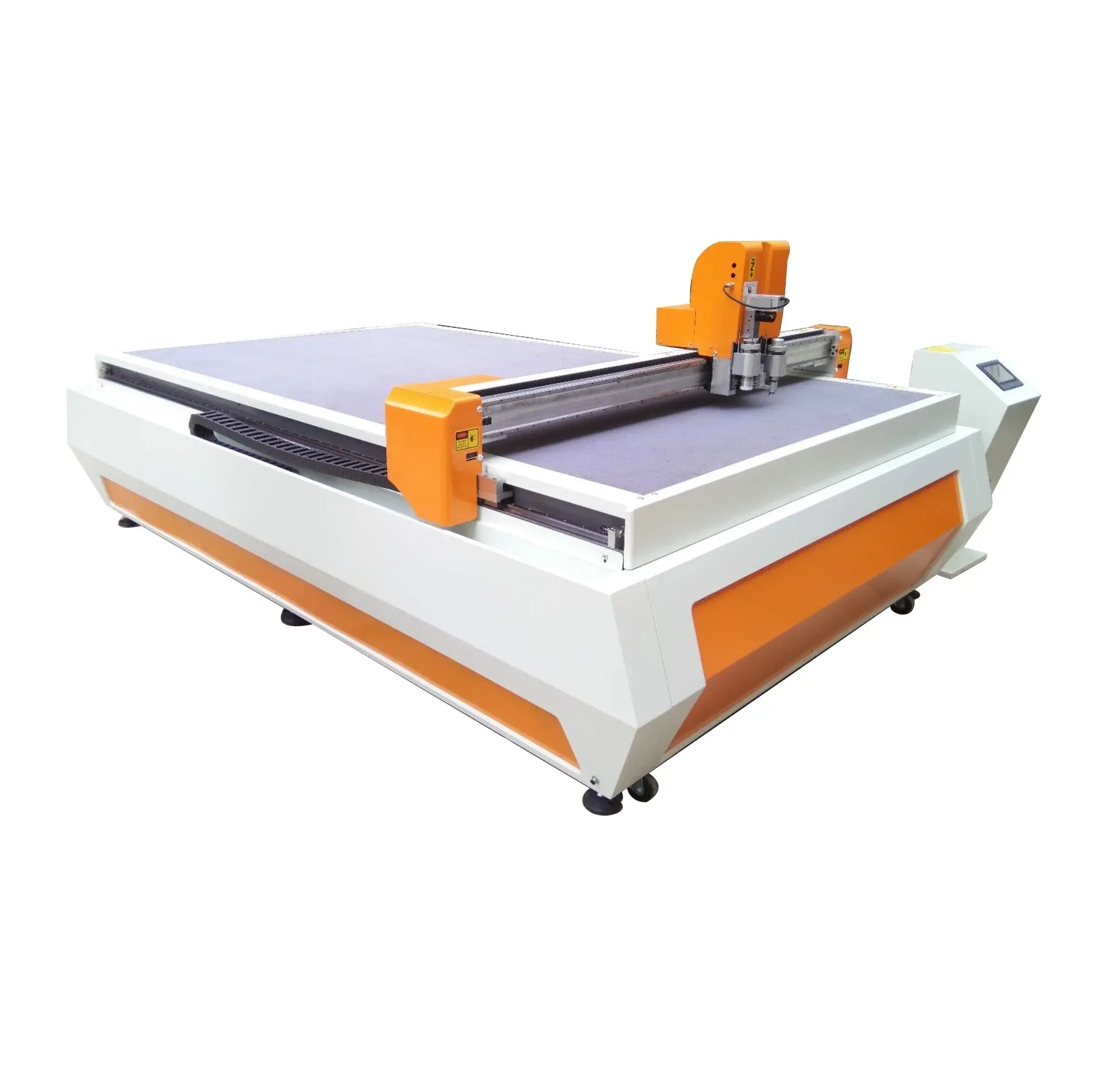

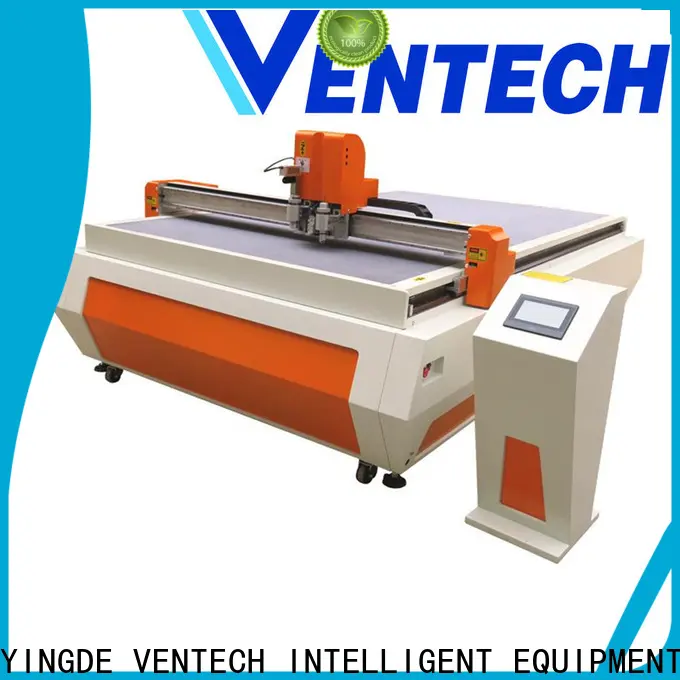

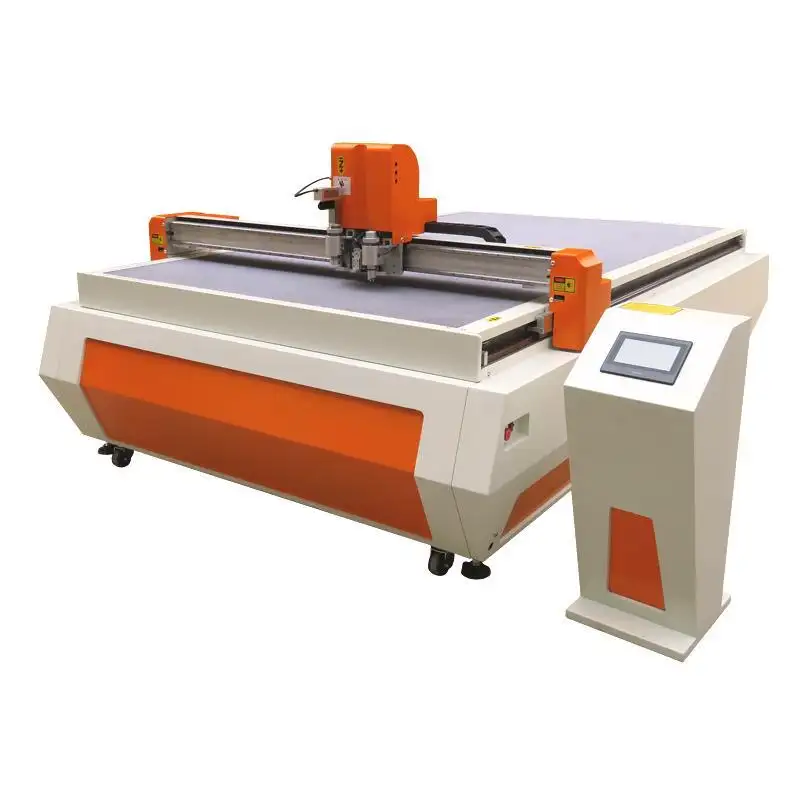

VENTECH insulation cutting machine is suitable for fiberglass and external thermal insulation cutting for HVAC ductwork. With our simple and smooth operating system, the complex graphics and product can be easily, precisely, and rapidly cut and produced, for material HVAC duct insulation with aluminum foil or with foil, or temperature insulation, this fiberglass cutter or duct insulation cutting machine permits to obtain finished pieces for ducts in pre-insulated; no more hand operations to do, the pieces obtained are ready to be glued. The standard machine is completed with a large quantity of accessories and devices dedicated to reduce the production time and generate the best quality of finished product.
Product Pictures
The product is now widely available in a variety of industries and has a wide range of applications. This product is ensured to have no leaking problems. The product has a large demand, has significant economic benefits, and has great market application potential. This product is ensured to have no leaking problems.

Company Features
1. VENTECH is well-known for quality and in the industry.
2. YINGDE VENTECH INTELLIGENT EQUIPMENT CO., LTD. has powerful technical advantage and can develop .
3. YINGDE VENTECH INTELLIGENT EQUIPMENT CO., LTD. shall continuously enhance the core competitiveness of enterprises. Check now!
Precious materials are adopted for .
The production of VENTECH is highly efficient.
VENTECH combines high performance materials with trendy and innovative design.
VENTECH is precisely designed using premium quality raw material and leading-edge technology.
The production of VENTECH is greatly improved and it reduces labor costs.
The functional defects of this product have been overcome by the professional team.
