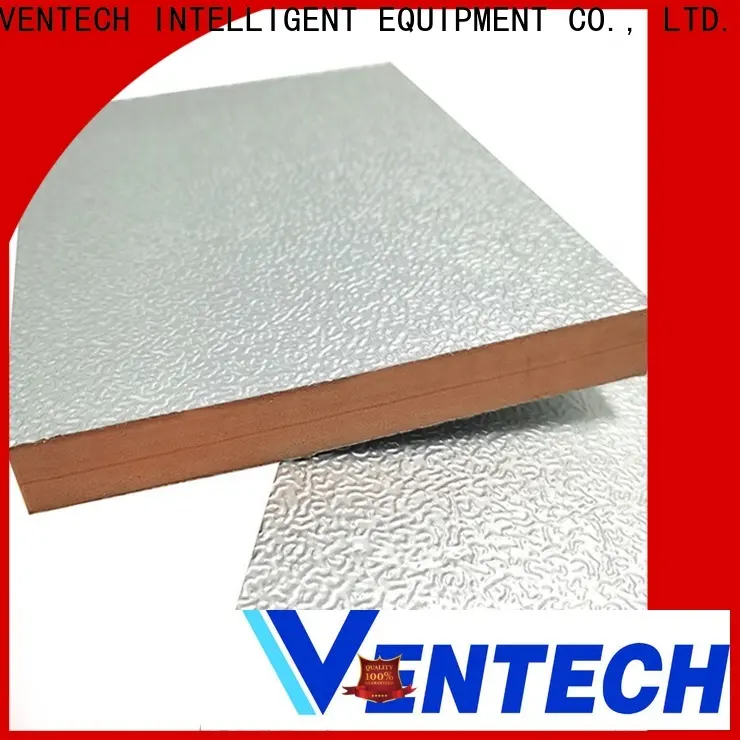

VENTECH Direct factory manufacture high quality pu pre insulated panel duct is suitable for all HVAC ducting.It can be farbicated into different kinds of shapes by cutting and adhesive connecting.Compared with the GI ducting,phenolic pre-insulated duct panel has the advantage of low weight,fast installation,fire-resistant,sound insulation and energy saving. HVAC air ducting aluminum foil phenolic foam board Our phenolic pre-insulated duct panel is made of 2 layers of aluminium foil at both side and 1 layer of phenolic foam in the middle.
Phenolic Board Specification
Length
3950/3900m
Width
1200m
Thickness
20,25,30mm
Thermal conductivity
0.030W/m.k
Density
55-65kg/m³
Compressive Strength
0.31Mpa
Water Absorption
0.60%
Dimension Stability
0.20%
Operating Temperature Limits
-25°C to 80°C
Application
Indoor
Fire and smoke performance
ASTM E84
Combustibility Property
Class 0
VENTECH Alu foil phenolic pre-insulated duct panel is manufactured from Phenolic Foam Pre-insulated Duct Panels and Accessories by a set of special tools. The Panels consist of panel thickness 20mm, with double-faced 60um aluminium foil, both sides faced with aluminum foil, aluminum sheet, etc.
Alu foil phenolic pre-insulated duct panel is accomplished by following a standardised procedure. The process is the same regardless of the shape of the duct element: tracing, cutting, gluing, folding, taping, flangeing & reinforcement and sealing. Alu foil phenolic pre-insulated duct panel is widely used in the ventilation systems of central air conditioning units in hotel, supermarket, airport, stadium, workshop, food store, industry and so on.
Product Features: panel thickness 20mm, with double-faced 60um aluminium foil
The product will benefit customers by offering great practical functionality no matter in commercial, industries, or household use. Its advanced serve system allows it to avoid unnecessary production waste.
The product has been regarded as a means of enhancing people's complexion, beautifying the appearance, and improving confidence. Its advanced serve system allows it to avoid unnecessary production waste.
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
