Product Overview

Certainly! Here is a summarized description of the "Pre-insulated Duct Board Cutting Machine" covering product overview, features, value, advantages, and application scenarios:

Product Features

**Product Overview:**

Product Value

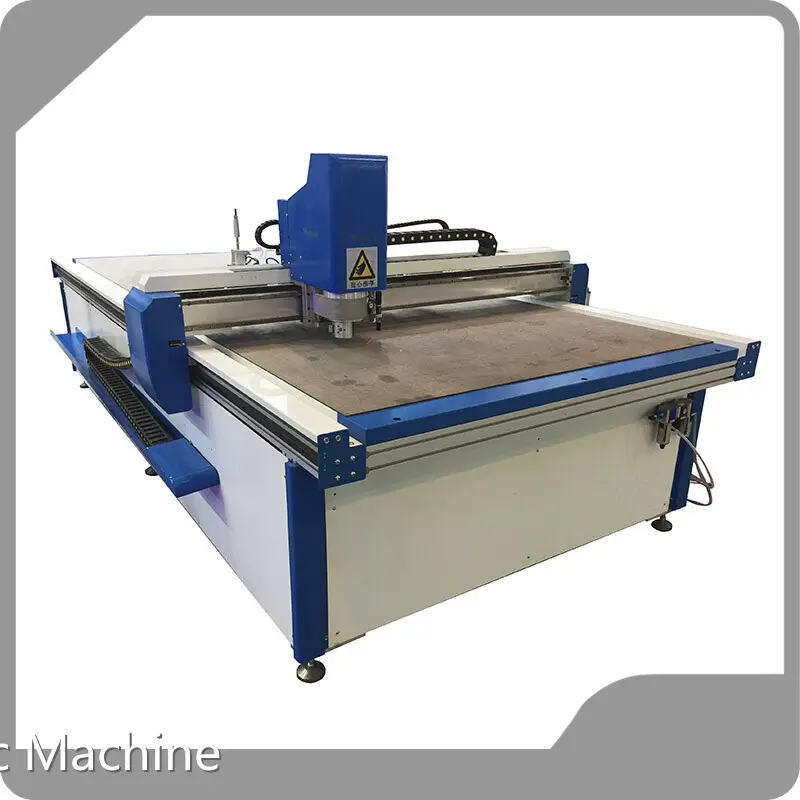

The Pre-insulated Duct Board Cutting Machine by YINGDE VENTECH is a fully automatic CNC cutting system designed specifically for HVAC ductwork fabrication. It efficiently cuts pre-insulated duct panels such as phenolic foam boards and various insulation materials with precision and speed, supporting complex shapes and mass production.

Product Advantages

**Product Features:**

Application Scenarios

- Fully automatic, CNC-controlled operation with a user-friendly interface and proprietary software.

- Combines cutting and V-grooving in one process using an enclosed automatic tool changer.

- Large working area (4000x1300mm) for maximum material utilization.

- Supports a variety of materials including phenolic panels, aluminum-polymer composites, fiberglass, PVC, PU, and PIR foam.

- High cutting accuracy (±0.2mm) and flexibility to produce diverse duct shapes such as elbows, reducers, Y-shapes, and more.

**Product Value:**

- Significantly increases production efficiency by automating traditionally labor-intensive tasks.

- Eliminates manual marking, template creation, and hand cutting, reducing labor costs and human error.

- Maximizes material usage via nesting capabilities to reduce waste and save production costs.

- Provides consistently accurate and repeatable results conducive to high-quality duct fabrication.

**Product Advantages:**

- Rapid manufacturing of duct components with reduced lead and production cycle times.

- Ability to produce both simple and complex duct shapes effortlessly and accurately.

- Reduction of material waste through optimal nesting and precise cutting.

- Panels come off the machine ready for gluing and assembly with no additional rework needed.

- Equipped with a comprehensive dust removal system to maintain a clean working environment.

- Outperforms competitors in stability, speed, and cost-efficiency.

**Application Scenarios:**

Ideal for HVAC manufacturers and ventilation system fabricators requiring automatic cutting of pre-insulated ducts. It is suitable for processing various insulation materials and sheet metals (galvanized steel 0.4-6mm thick) used in air conditioning, ductwork, and pipe insulation projects. The machine adapts to customer-specific design requirements and helps solve production bottlenecks in duct fabrication.
