Pir Pre Insulated Duct Phenolic Air Duct Panel and Accessories Wholesale - VENTECH

Product Overview

Sure! Here is the summary of the product "Pir Pre Insulated Duct Phenolic Air Duct Panel and Accessories Wholesale - VENTECH" based on the detailed introduction:

Product Features

**Product Overview**

Product Value

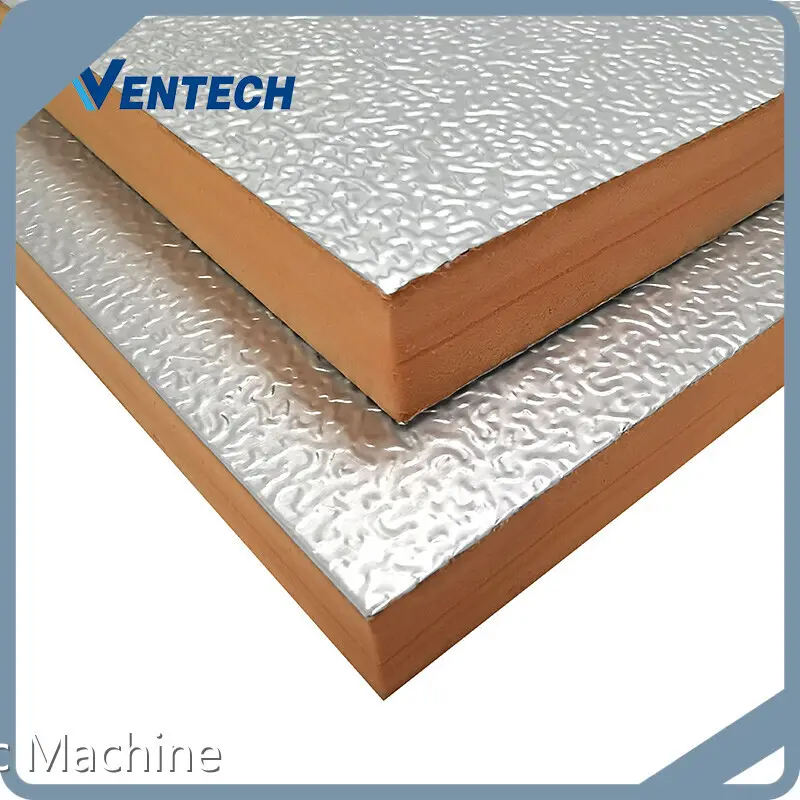

The VENTECH Phenolic Air Duct Panel is a pre-insulated duct system made from phenolic foam board, designed for indoor air duct applications. It comes in various standard sizes (lengths of 2000, 3900, and 3950 mm; width of 1200 mm; thickness options of 20, 25, and 30 mm) and is manufactured with a thermal conductivity of 0.030 W/m·K and a density ranging from 45 to 59 kg/m³.

Product Advantages

**Product Features**

Application Scenarios

- High thermal insulation performance due to low thermal conductivity.

- Strong compressive strength of 0.31 MPa and excellent dimensional stability (0.02%).

- Very low water absorption rate (0.06%).

- Operating temperature range from -25°C to 80°C.

- Complies with fire and smoke safety standards ASTM E84 and BS, classified as Class 0 for combustibility.

**Product Value**

VENTECH panels offer reliable insulation and fire resistance that improve HVAC system efficiency, reduce energy consumption, and enhance indoor air safety. The product’s durability and stable physical properties ensure long service life and minimal maintenance.

**Product Advantages**

- Manufactured by YINGDE VENTECH INTELLIGENT EQUIPMENT CO., LTD., a company with strong technical capabilities, independent R&D, and advanced imported production equipment.

- Environmentally friendly manufacturing processes focused on minimizing climate impact and optimizing resource use.

- High-quality assurance gained through compliance with international standards and excellent customer trust.

**Application Scenarios**

Ideal for use in indoor HVAC systems requiring insulated air ducting solutions that prioritize thermal efficiency and fire safety. Commonly applied in commercial buildings, industrial facilities, and other sectors where reliable air duct insulation is critical. The product supports customized solutions tailored to customer needs following a “customer first, services first” approach.
