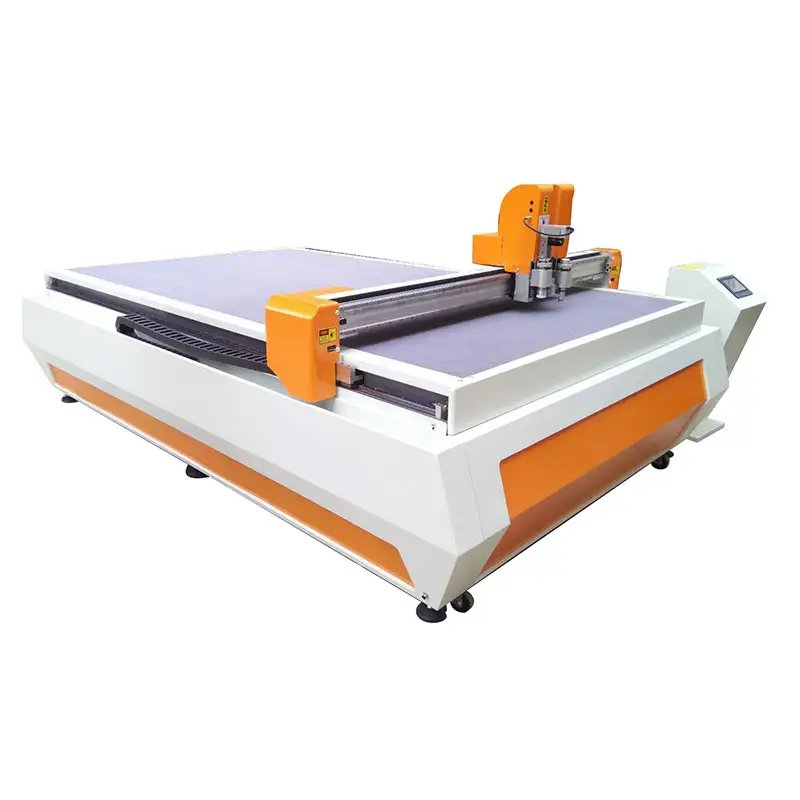

    VENTECH insulation cutting machine is suitable for fiberglass and external thermal insulation cutting for HVAC ductwork. With our simple and smooth operating system, the complex graphics and product can be easily, precisely, and rapidly cut and produced, for material HVAC duct insulation with aluminum foil or with foil, or temperature insulation, this fiberglass cutter or duct insulation cutting machine permits to obtain finished pieces for ducts in pre-insulated; no more hand operations to do, the pieces obtained are ready to be glued. The standard machine is completed with a large quantity of accessories and devices dedicated to reduce the production time and generate the best quality of finished product.

    1. It adopts advanced seamless embedded system, no need to configure processing control software separately, and has faster processing speed.

    2. The intelligent adsorption technology can automatically allocate the adsorption range according to the cutting position. Even if a low-power vacuum pump is used, there will be no insufficient adsorption force when cutting small products, which can effectively ensure the cutting quality and save the electricity cost.

    3. High wear-resistant, high-precision linear guide rails ensure that the equipment can operate at high speed, stability, and high precision.

    4. Independently produced electric cabinet, external air conditioner, and can be used normally under high temperature conditions.

    HVAC insulation cutting machine with automatic feeding table 6

    Specification

    Working size2500x1600mm, 1800x1300mm, 3000x1600mm
    Material fixing wayVacuum suction system
    Cutting speed80-2,500mm/s(according to different material)
    Cutting thickness≤50mm
    Cutting accuracy≤0.1mm
    Drive systemServo driver
    Transmission systemLinear square rail & belt
    Instruction systemHP-GL compatible format
    Vacuum pump power10.7KW
    Graphic format supportedPLT, DXF, AI, HPJ, etc.
    CompatibleCORELDRAW, PHOTOSHOP, AUTOCAD, etc.
    Safety deviceInfrared sensors & emergency stop devices
    Working voltage380V±10%, 50Hz/60Hz
    PackageWooden case
    Machine size3415×2480×1250mm

    Application

    HVAC insulation cutting machine with automatic feeding table 7
    HVAC insulation cutting machine with automatic feeding table 8
