Heat wrapping and shrinking machine for air outlets VBF-75 1

Heat wrapping and shrinking machine for air outlets VBF-75 2

Heat wrapping and shrinking machine for air outlets VBF-75 3

Heat wrapping and shrinking machine for air outlets VBF-75 4

Heat wrapping and shrinking machine for air outlets VBF-75 5

Heat wrapping and shrinking machine for air outlets VBF-75 6

Heat wrapping and shrinking machine for air outlets VBF-75

Name: Heat wrapping and shrinking machine for air outlets VBF-75
Brand: VENTECH

MOQ:

1 set

Payment:

50% T/T down payment,50% T/T balance before shipment

Place of Origin:

China

Brand:

VENTECN

Delivery time:

45-60 days

Start Port:

Shenzhen

Inquiry

Write a Review

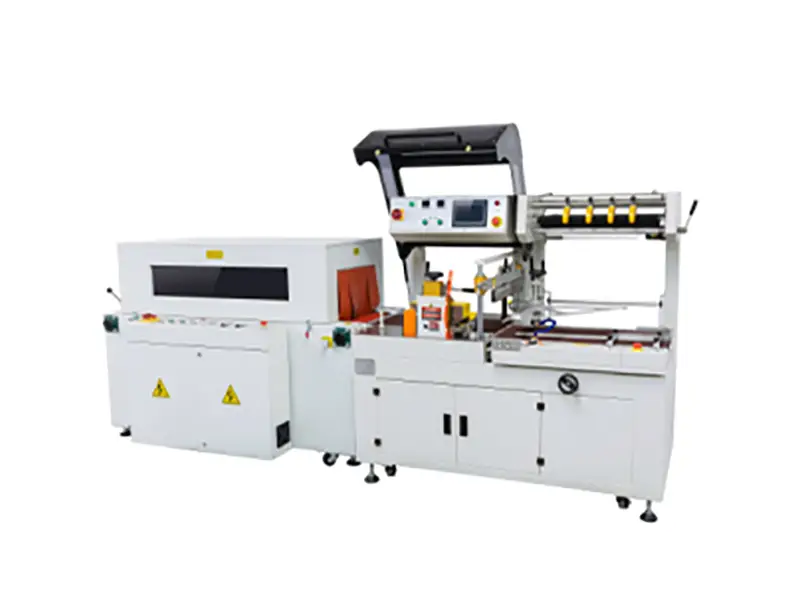

Automatic wrapping & sealing machine

It is a kind of economical edge sealing packaging machine independently developed by our company. It is widely used in the flow operation of mass production packaging, automatic feeding, conveying, bagging, sealing and shrinking. High for products of different heights and widths.

Heat shrink packaging is one of the more advanced packaging methods on the international market. It is wrapped with a POF shrink film on the outside of the product or package, and then heated to shrink the packaging material to wrap the product or the package, fully displaying the exhibitability and concentration of the article to increase the aesthetic and value; at the same time, after packaging The items can be sealed, protected from moisture and pollution. It also protects the object from external impacts and has a certain cushioning property. In addition, it can reduce the possibility of the product being dismantled and stolen.

Application:

It is suitable for booking packing,

Diffusers and grilles packing;

And other Daily necessities packing, such as soap, shampoo etc.

Heat wrapping and shrinking machine for air outlets VBF-75 7

Specification

Product name	Automatic wraping&sealing machine	Heat-shrinking machine
Model	VBF-75	VSM-8030LX
Voltage/ Powder	380V/3KW	380V/20KW
Speed	20-40pcs/min（depends on the length）	0-12m/min
Sealing size / inner furnace size（mm）	750	1500mm×800mm×300mm (length x width x height)
Packaging size（mm）	Un-limited length，width+height≤650mm，height≤200mm	width≤700 height≤250
Equipment size（mm）	1820mm×1200mm×1500mm (length x width x height)	1800×1400×1300mm (length x width x height)
Gas fountain	6-8KG/ cm³	NO
Net weight	380KG	750KG
Packing material	POF	POF\PVC
