Wholesale HVAC High Quality Aluminum Sheet Single Deflection Grille for Ventilation System

Type:

HVAC Systems,Ventilation

Lead_Time:

1 - 3000(Pieces):30(days),>3000(Pieces):Negotiable(days)

samples:

US$99.00/Pieces, 1 Piece (Min. Order)

shipping:

Support Sea freight · Land freight

Customization:

Customized packaging (Min. Order: 1000 Pieces)

MOQ:

1 set

Payment:

50% T/T down payment,50% T/T balance before shipment

Place of Origin:

China

Brand:

VENTECN

Delivery time:

45-60 days

Start Port:

Shenzhen

Inquiry

Write a Review

Overview

Quick Details

Warranty:NONE

After-sale Service:NONE

Project Solution Capability:NONE

Application:Hotel, Building

Design Style:Contemporary

Place of Origin:Guangdong, China

Brand Name:VENTECH

Model Number:SDG-VA

Product name:Aluminum single deflection grille

Function:Air Outlet

Color:9016,9010,anodized

Material:Aluminum

Size:Any size as customized

Shape:Rectangle shape

Finshed:Powder coated finished

Feature:Easy Installtion

Material thickness:1.0mm

Wholesale HVAC High Quality Aluminum Sheet Single Deflection Grille for Ventilation System 7

Single deflection grille- adjustable blades

Product Description

Product Information

Wholesale HVAC High Quality Aluminum Sheet Single Deflection Grille for Ventilation System

FEATURES:

Made of high quality extruded aluminum profile.
Blades are removable on horizontal.
Mounting by screws or spring clips.
Opposed Blade Damper optional.
Color RAL 9010, RAL9016,or Anodized.
Other size is available

Overview

Price premium quality extruded aluminum louvered, single deflection grilles are the choice of architects and engineers who demand superior performance, design, and construction.

Features

Fully adjustable airfoil blades
Extruded aluminum frame
Single or double deflection blades
Blades parallel to the long or short dimension
Optional architectural finishes, including powder coated finished, mill finished and anodized

Typical Applications

The sleek lines of the extruded aluminum frame and blades make the single deflection grille well suited to architectural applications. With clean lines and single piece sections, the grille is ideal for installations that demand large grilles in single piece construction.

Construction Options

Core
- Single Deflection (SDG-VA)
- Double Deflection (DDG-VA)
Blade Orientation
- Parallel to the long dimension
- Parallel to the short dimension
Mounting
- Surface mount
- Lay-In
- Exposed Duct
- Panel Mounted
Available Sizes
- Any sizes as required
- Oversized construction available
Options
- Aluminum Opposed Blades Damper (OBD)
- Spring clips for grilles
- Holes and screws

SDG-VA Data:

Product sample picture:

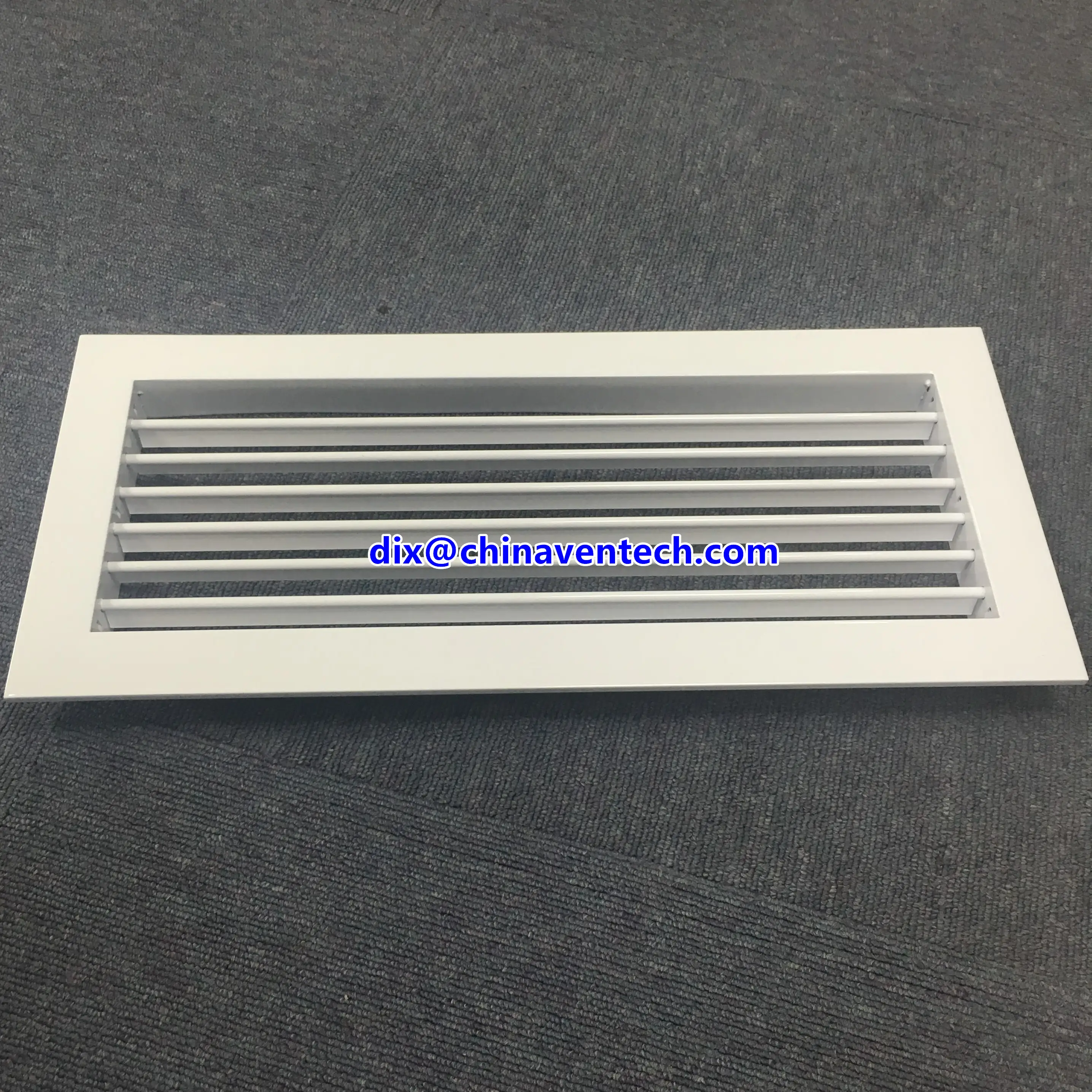

Single deflection grille SDG-VA:

Double deflection grille DDG-VA:

Company Information

Wholesale HVAC High Quality Aluminum Sheet Single Deflection Grille for Ventilation System

Packaging & Shipping

Wholesale HVAC High Quality Aluminum Sheet Single Deflection Grille for Ventilation System

Packing Details:

*Neutral packing: export standard carton.
*Unit packing: heat-shrink film packing for each product, plastic protect corner is optional.
*All of the productions are inspected carefully by QC before delivery.

Delivery Time:
*Normally 30 days production time after receiving the deposit.
*Urgent orders could be on priority.
Min. Order
*If order based on EXW terms, no MOQ is required.
*If order based on FOB or CNF or CIF terms, there’s MOQ for your options.
*Container orders will have more favorable price.

FAQ

Q: Are you a manufacturer?
A: Yes, we are a professional manufacturer, and we have more than 15 years manufacturing and overseas sales experiences. Now we've sold our HVAC system air supply return ceiling diffuser to more than 26 countries!!!

Q: What's the MOQ?
A: The MOQ is 5000usd per order. Mixed supply ceiling diffuser is allowed.

Q: Can you provide free sample?
A: Yes, we could provide free sample of supply ceiling diffuser. But we don't pay for the delivery cost.

Q: What's the delivery time?
A: the delivery time is about 30days.

Q: what's the payment term?
A: T/T, L/C

Q: Can we buy under our own logo?
A: No problem.

Q: What is the quality?
A: we offer high quality products. VENTECH is famous for it's high quality and most competitive price!

Q: Can I be a VENTECH brand distributor?
A: Yes, you can. Pls contact us for more details.

Wholesale HVAC High Quality Aluminum Sheet Single Deflection Grille for Ventilation System
