PIR Foam Board Cutting Machine Factory for Duct Fabrication

这里可以自定义设置
PIR Foam Board Cutting Machine Factory for Duct Fabrication
B站不支持收货地址
B站不支持库存规格
Lead_Time
1 - 1(Pieces):30(days),>1(Pieces):Negotiable(days)
shipping
Support Sea freight · Land freight
Customization
Customized logo (Min. Order: 10 Pieces),Customized packaging (Min. Order: 10 Pieces),Graphic customization (Min. Order: 10 Pieces)
Model Number
Other
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Showroom Location:None
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Marketing Type:New Product 2020
Warranty of core components:1 Year
Core Components:PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Brand Name:VENTECH
Condition:NEW
Applicable Industries:Manufacturing Plant, Construction works
Weight:1500 kg
Place of Origin:Guangdong, China
Warranty:1 Year
Key Selling Points:Easy to Operate
Material:Composite material
Usage:for Air Conditioning
Cutting Shapes:Elbow, Shoe, straight cut etc.
Fuction:Cutting phenolic duct parts
Certificate:ISO14001
Material thickness:≤30mm
Cutting Tolerance:0.2mm
Supply Voltag:AC220V, 380V 50Hz
After Warranty Service:Video technical support
Product Information
Data/ Model
VSCM-2516
VSCM-1813
Working size
2500*1600mm
1800*1300mm
Machine size
3415*2480*1250mm
2415*2220*1400mm
Cutting speed
80-2,500mm/s
0-1000mm/s
Cutting thickness
≤50mm
≤40mm
Cutting accuracy
≤0.1mm
≤0.1mm
Power
10KW
7.5KW
Graphic format supported
AI, Coreldraw, Photoshop, AutoCAD, etc.
AI, Coreldraw, Photoshop, AutoCAD, etc.
Working voltage
380V±10%, 50Hz/60Hz
380V±10%, 50Hz/60Hz
Package
Wooden case
Wooden case
Product Description

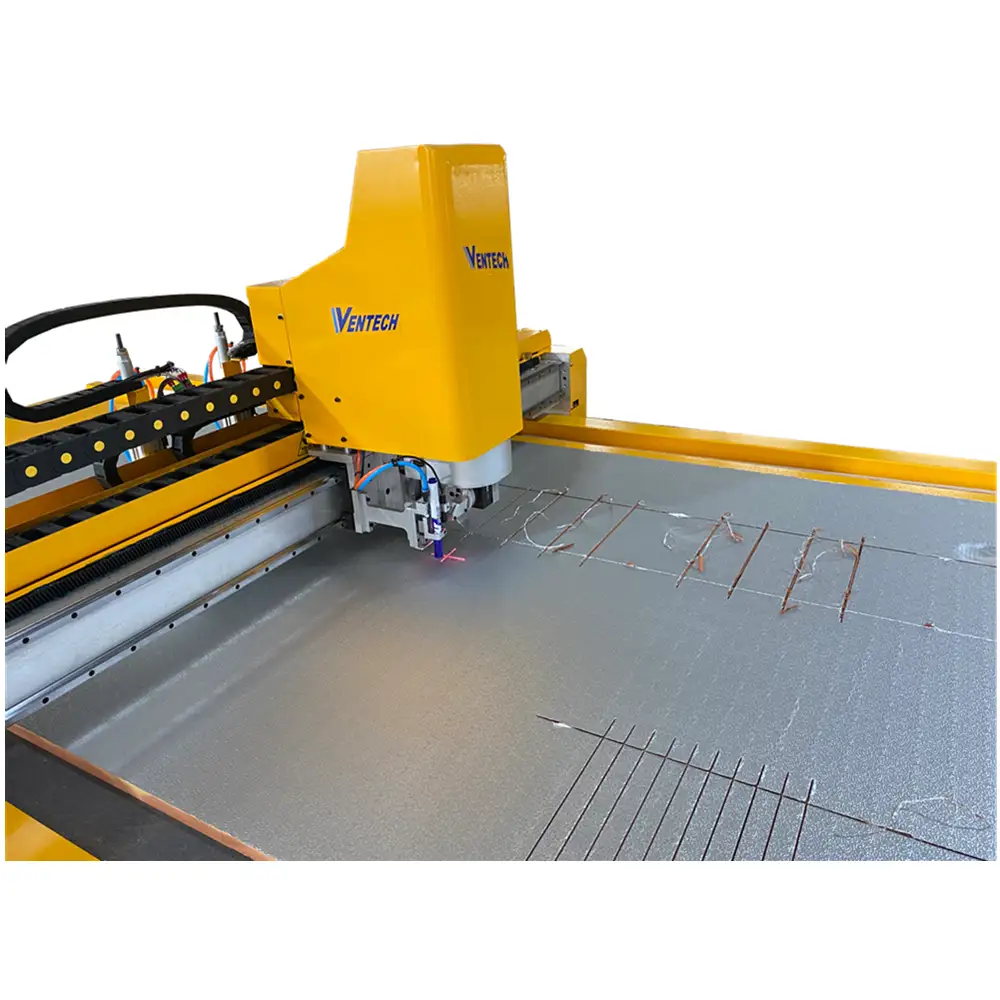

VENTECH insulation cutter can handle insulation, fiberglass etc.
· Optional fixed table (for sheet material) and automatic feeding table (for roll material).
· Vacuum pump for fixing the material.
· No need skilled worker, but operated at high cutting speed, stability and high precision.
Product Pictures
The use of this product will help manufacturers hire more high-level talents, they are equipped with technical machines. This, in turn, will give manufacturers a competitive advantage. Its advanced serve system allows it to avoid unnecessary production waste. The product provides substantial benefits to manufacturers. It helps them cut unnecessary costs on labor and reduce expenditure on energy costs. Its advanced serve system allows it to avoid unnecessary production waste.
