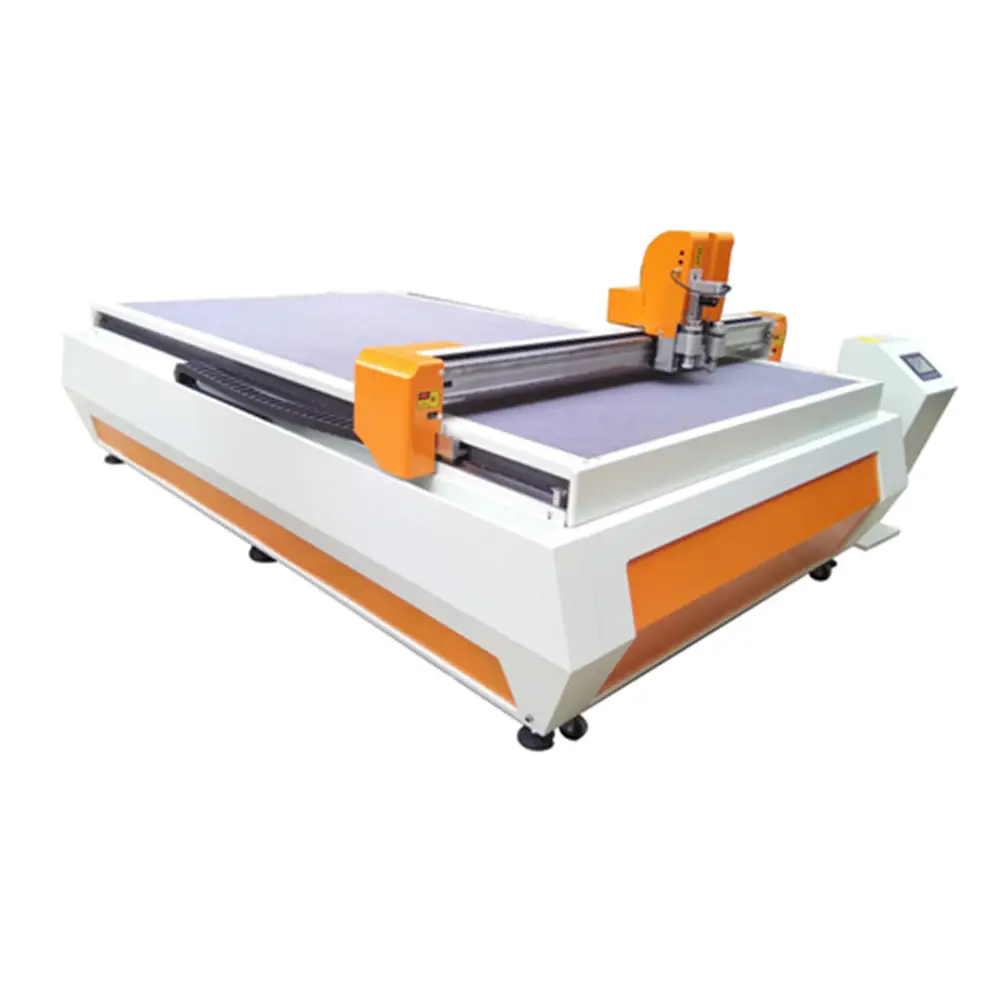

Knife Cutting Machine for PIR Insulation
B站不支持收货地址
B站不支持库存规格
Lead_Time
1 - 1(Pieces):30(days),>1(Pieces):Negotiable(days)
shipping
Support Sea freight · Land freight
Customization
Customized logo (Min. Order: 10 Pieces),Customized packaging (Min. Order: 10 Pieces),Graphic customization (Min. Order: 10 Pieces)
Model Number
Other
参数暂无数据
多属性暂无数据
B站不支持优惠卷
暂无分享
B站不支持产品保障
Overview
Quick Details
Showroom Location:None
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Marketing Type:New Product 2020
Warranty of core components:1 Year
Core Components:PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Brand Name:VENTECH
Condition:NEW
Applicable Industries:Manufacturing Plant, Construction works
Weight:1500 kg
Place of Origin:Guangdong, China
Warranty:1 Year
Key Selling Points:Easy to Operate
Material:Composite material
Usage:for Air Conditioning
Cutting Shapes:Elbow, Shoe, straight cut etc.
Fuction:Cutting phenolic duct parts
Certificate:ISO14001
Material thickness:≤30mm
Cutting Tolerance:0.2mm
Supply Voltag:AC220V, 380V 50Hz
After Warranty Service:Video technical support
Product Information
Working size
2500x1600mm
Material fixing way
Vacuum suction system
Cutting speed
80-2,500mm/s(according to different material)
Cutting thickness
≤50mm
Cutting accuracy
≤0.1mm
Drive system
servo driver
Transmission system
linear square rail & belt
Instruction system
HP-GL compatible format
Vacuum pump power
10.7KW
Graphic format supported
PLT, DXF, AI, HPJ, etc.
Compatible
CORELDRAW, PHOTOSHOP, AUTOCAD, etc.
Safety device
Infrared sensors & emergency stop devices
Working voltage
380V±10%, 50Hz/60Hz
Package
Wooden case
Machine size
3415×2480×1250mm
Product Description
VENTECH insulation cutting machine is suitable for fiberglass and external thermal insulation cutting for HVAC ductwork. With our simple and smooth operating system, the complex graphics and product can be easily, precisely, and rapidly cut and produced, for material HVAC duct insulation with aluminum foil or with foil, or temperature insulation, this fiberglass cutter or duct insulation cutting machine permits to obtain finished pieces for ducts in pre-insulated; no more hand operations to do, the pieces obtained are ready to be glued. The standard machine is completed with a large quantity of accessories and devices dedicated to reduce the production time and generate the best quality of finished product.
Product Pictures
The product is competitively priced and widely used by people from all walks of life. Its high-speed motor guarantees its high productivity. With the above excellent characteristics, the product has good competitiveness and good development prospects. Its high-speed motor guarantees its high productivity.
